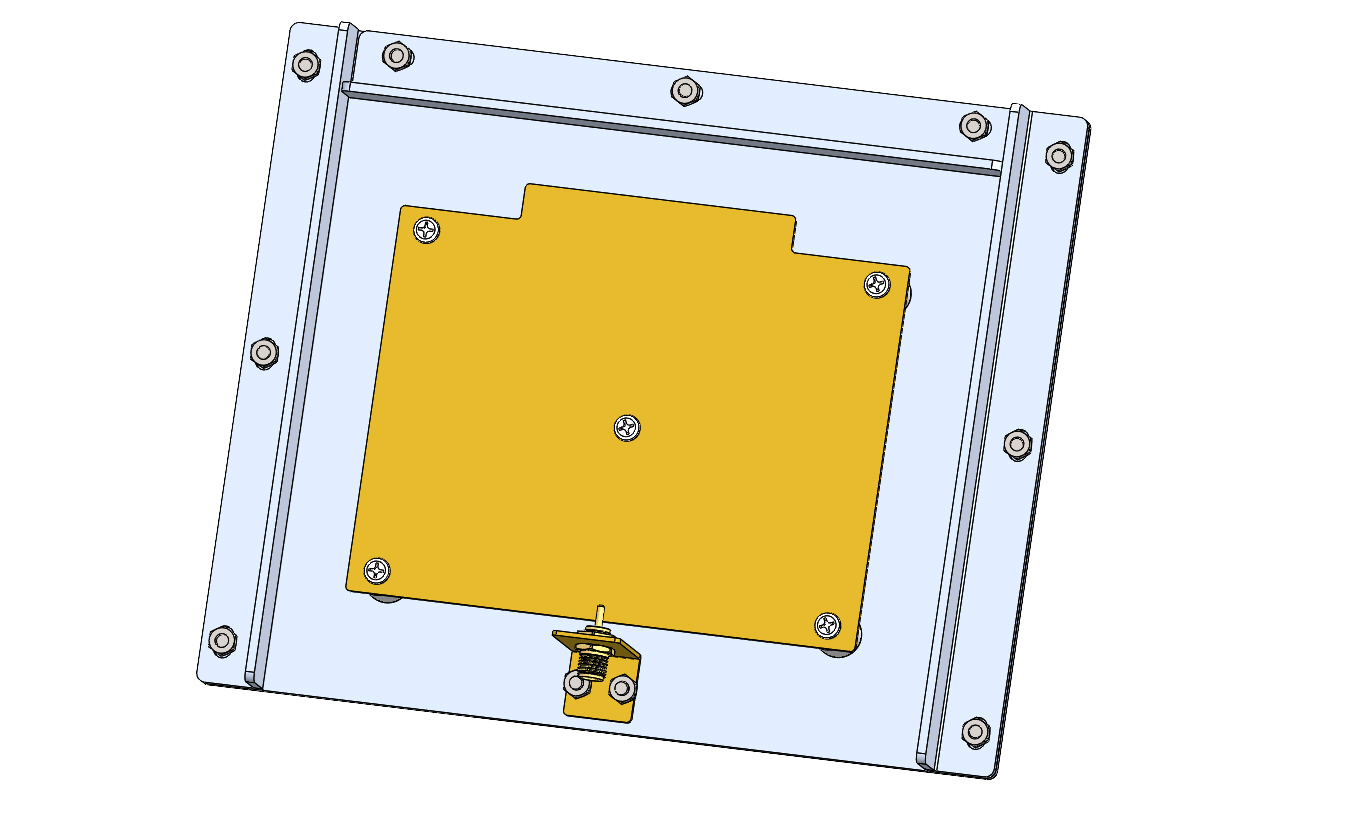

1.4 to 1.6GHz 8dbi High Power Panel Directional Jammer Antenna SMA-Female
Military FT-RF Taiwan
10 out of
10
-
Description & Specification
Application
- 1.4 to 1.6GHz 8dbi High Power Panel Directional Jammer Antenna SMA-Female
Specifications
| Model : | MP-1416G08A-SF |
| LxWxH : | 177x145x28mm |
| Connector : | SMA-Female |
| Styling : | Patch Antenna |
| Gain : | 8dbi |
| -3db Beam-width : | Horz.58 deg Vert.46 deg |
| N.W. : | 0.35kg |
| Frequency : | 1.4GHz to 1.6GHz |
| Polarization : | Vertical or Horizontal |
| Max Power(C.W) : | 300W 1 |
