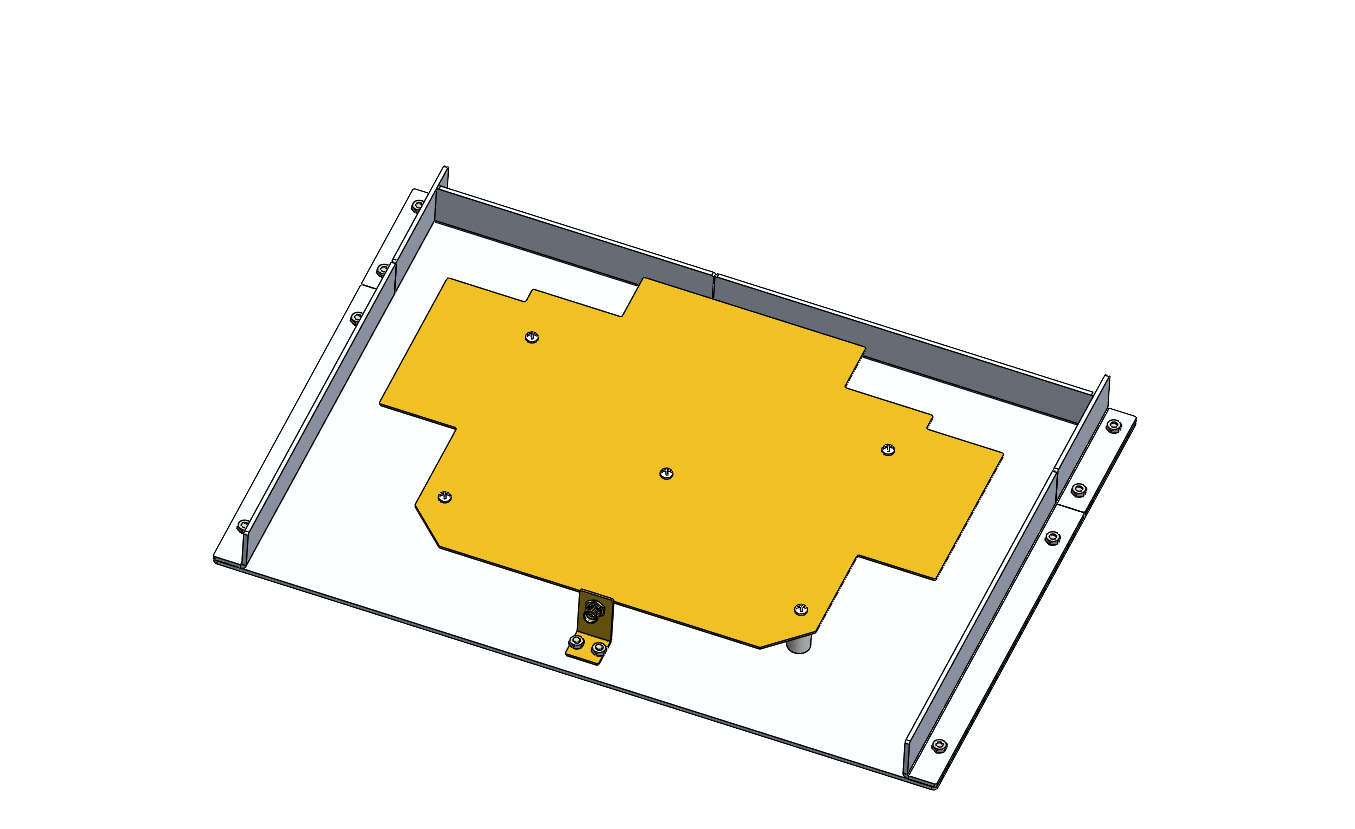

800MHz to 1GHz High Power 8dbi Panel Directional Jammer antenna SMA-Female
Military FT-RF Taiwan
10 out of
10
-
Description & Specification
Application:
- 800MHz to 1GHz High Power 8dbi Panel Directional Jammer antenna SMA-Female
Feature:
- Compact design, lightweight
- Superior performance
- Good appearance design
- Compliant with MIL-Stds
Specifications
| Model : | MP-08M1G08A-SF |
| LxWxH : | 325x231x28mm |
| Connector : | SMA-Female |
| Styling : | Patch Antenna |
| Gain : | 8dbi |
| -3db Beam-width : | Horz.58 deg Vert.46 deg |
| N.W. : | 0.6kg |
| Frequency : | 800MHz to 1GHz |
| Polarization : | Vertical or Horizontal |
| Max Power(C.W) : | 300W |
