1030mm Steel belt Whip Antenna (M8*1.25）
Military FT-RF Taiwan
10 out of
10
-
Description & Specification

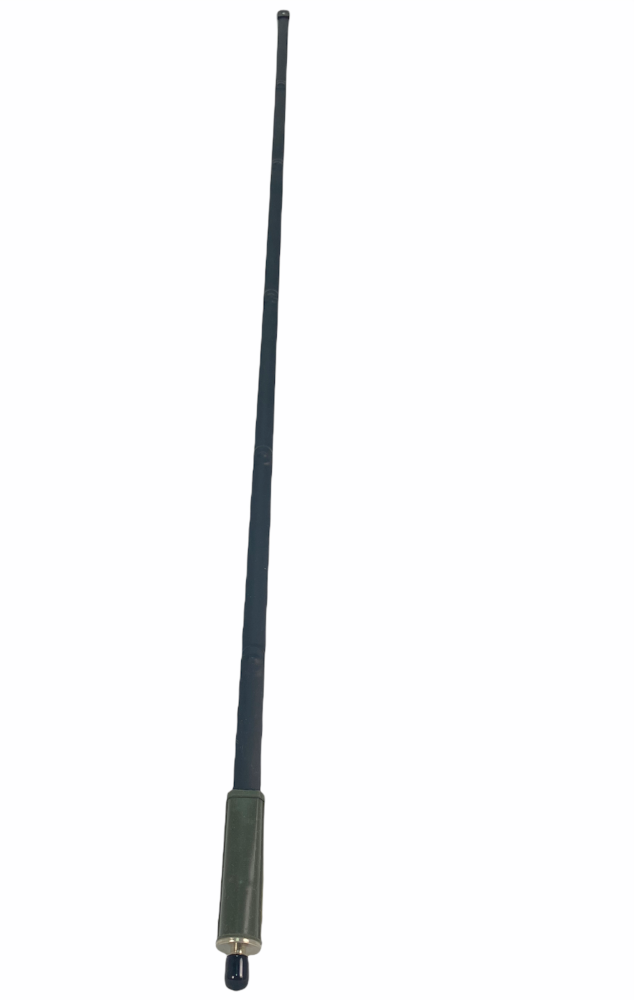

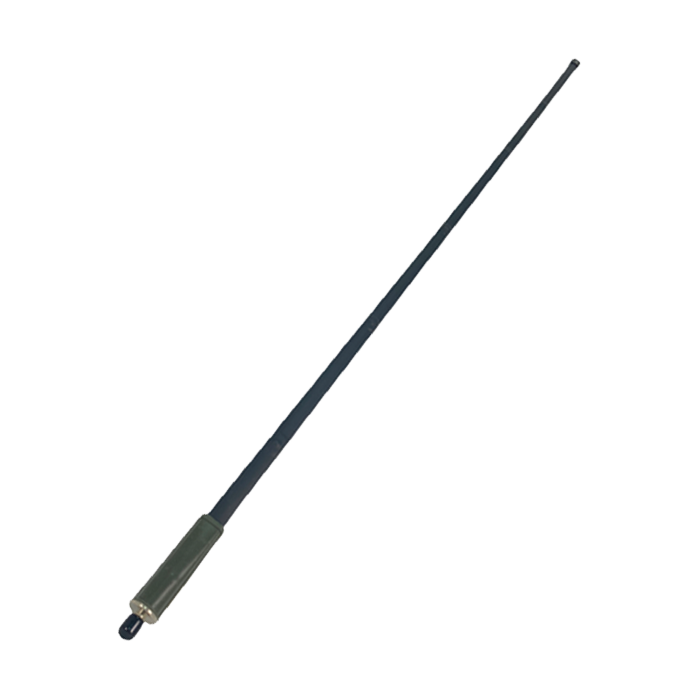

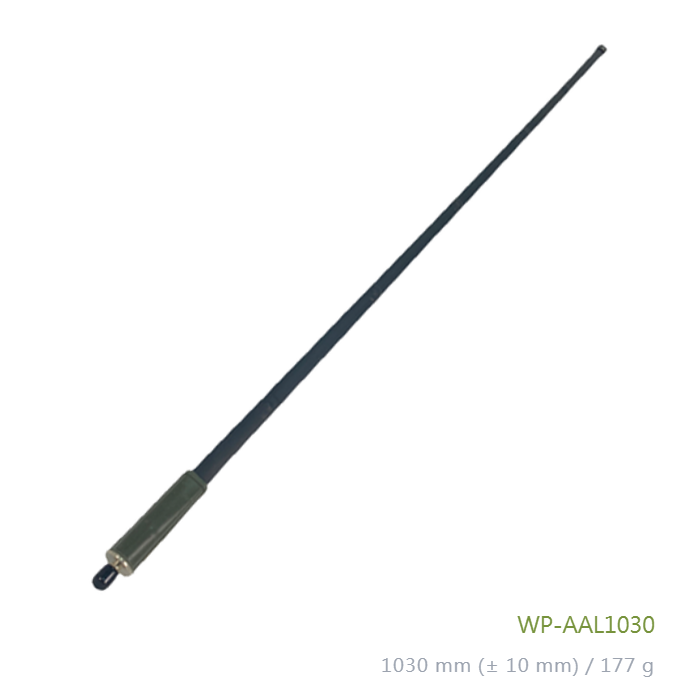

1030mm VHF Manpack Whip Antenna (Model: WP-AAL1030)
Multilayer Tape Radiator | M8 Connector | Continuous High Power | 177g
The WP-AAL1030 is the premier long-range model in our VHF manpack antenna series. With an extended length of 1030mm, it maximizes radiation efficiency in the VHF band, providing superior range for portable radios equipped with integrated antenna tuners. The radiator utilizes a specialized multilayered tape construction, which delivers excellent conductivity and the flexibility to withstand rough field handling without breaking. Weighing 177g and supporting Continuous High Power, it connects via a standard M8x1.25 interface, making it the ultimate choice for extended-range tactical communications.
Technical Specifications
Electrical & Mechanical Specifications
| Model Number | WP-AAL1030 |
| Frequency Band | VHF (Requires Integrated Tuner) |
| Radiator Type | Multilayered Tape (Flexible) |
| Power Handling | Continuous High Power |
| Length | 1030 mm (± 10 mm) |
| Weight | 177 g |
| Connector | M8 x 1.25 - 2B (Standard) |
Key Features (Model Specific)
1030mm Maximized Range
The 1-meter length significantly enhances gain and transmission distance, ideal for operations requiring maximum coverage.
Designed for Antenna Tuners
Optimized to work seamlessly with manpack radios featuring internal automatic antenna tuners (ATU) for broad VHF coverage.
Multilayered Tape Structure
Composed of several conductive tape layers connected together, offering superior flexibility and conductivity compared to standard wires.
Continuous High Power
Engineered to handle continuous high-power signal transmission, suitable for intensive tactical operations.
Flexible & Robust
The tape design allows the antenna to be folded or bent during movement through dense terrain without permanent deformation.
Get a Quote / Customization
Contact us for custom lengths or different connector types.
