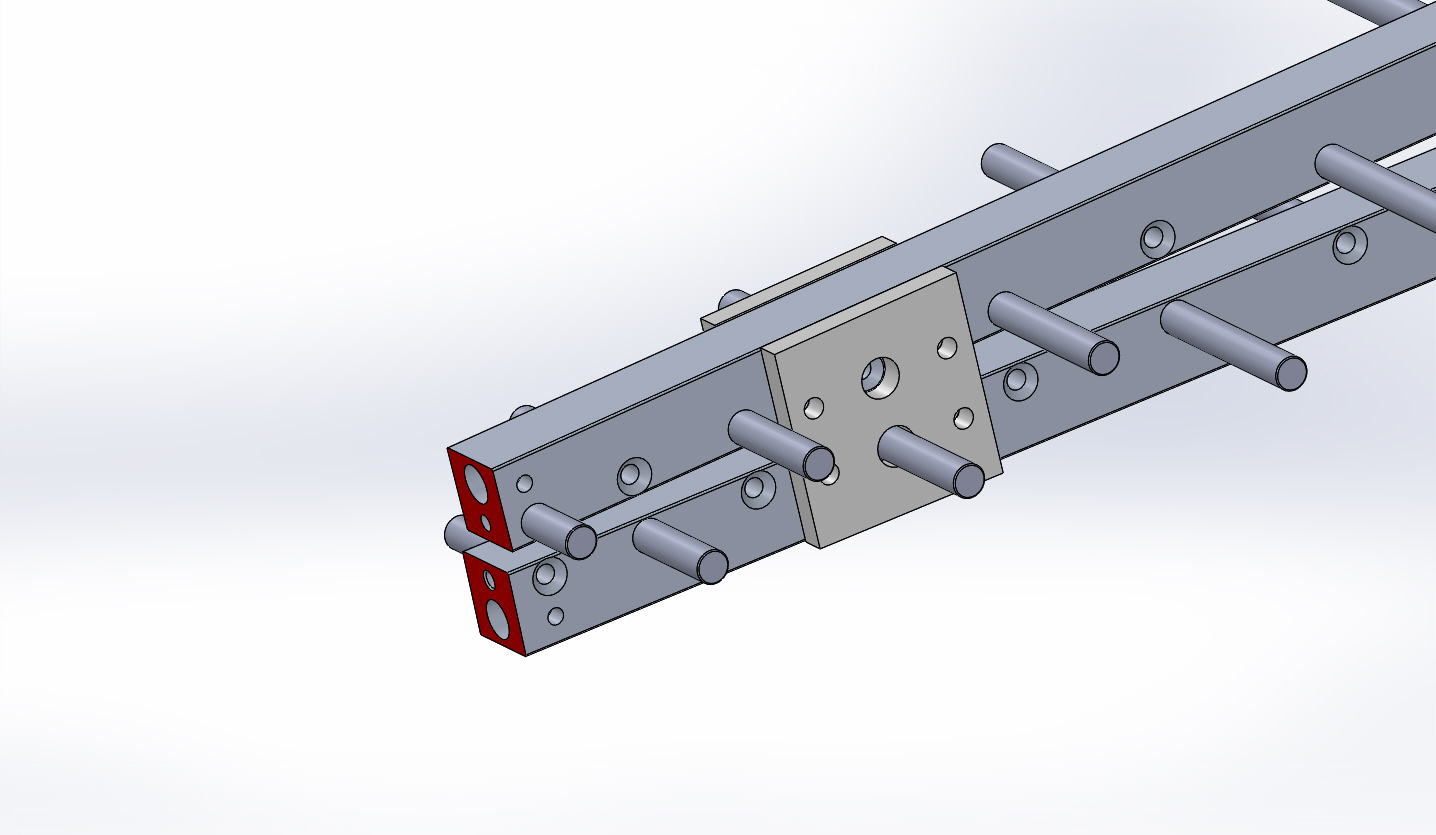

800 to 2700MHz Pro Military Log-periodic antenna N-Female
Military FT-RF Taiwan
10 out of
10
-
Description & Specification
Application:
- 800 MHz to 2700MHz Pro Military Log-periodic antenna N-Female
Feature:
- Superior performance
- Good appearance design
- Compliant with MIL-Stds
Specifications
|
Frequency Range |
700MHz - 3000MHz |
|
V.S.W.R |
≦2.5 |
|
Antenna Type |
Log Periodic |
|
Radiation |
Directional |
|
Gain (AVG) |
8dBi |
|
Polarization |
Vertical or Horizontal |
|
Maximum Power |
500W |
|
Vertical Beamwidth |
54Deg |
|
Horizontal Beamwidth |
75Deg |
|
Impedance |
50 Ohm |
|
Antenna Design |
Log Array |
|
Internal Material |
6061T6 Aluminum |
|
Connector |
N-Female |
|
Storage Temperature |
-20 to +80 |
|
Operating Temperature |
-20 to +60 |
|
Operating Humidity |
10%~80% non-condensing |
|
Storage Humidity |
5%~80% non-condensing |
|
Safety, Emission and other |
RoHS |
