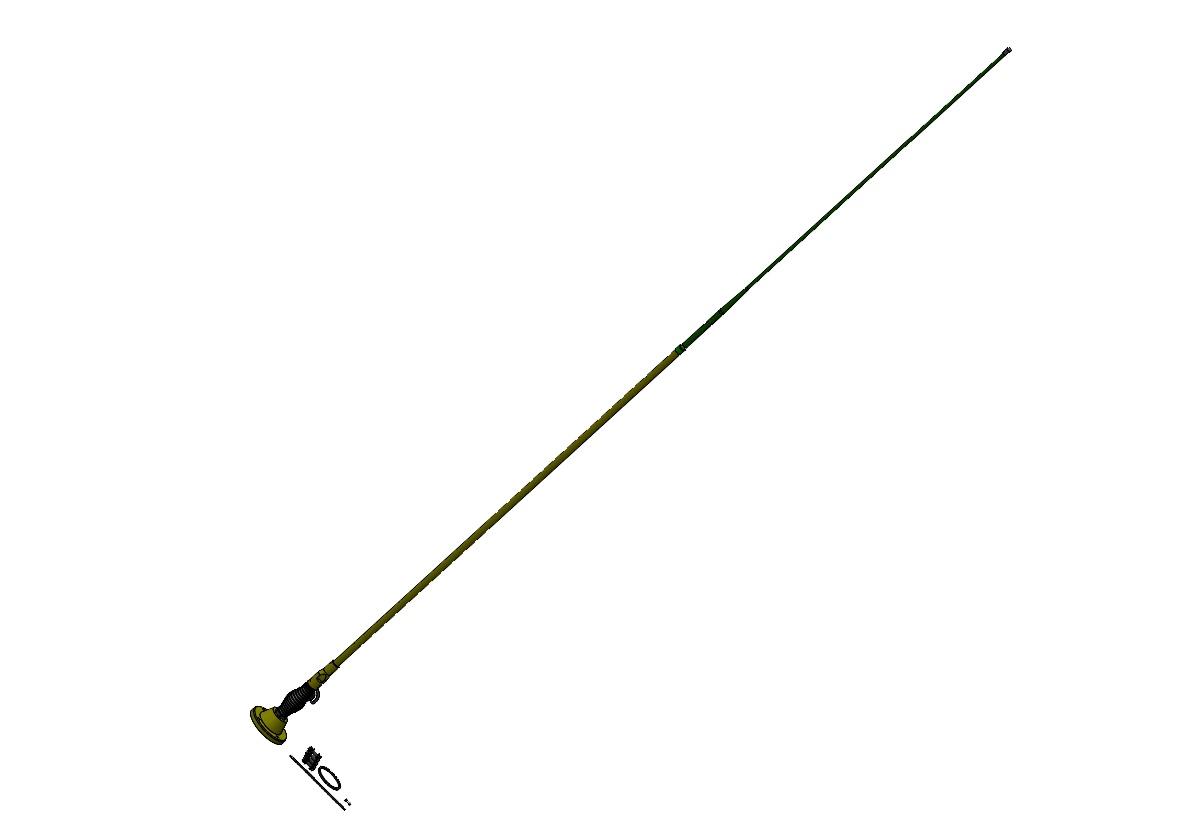

30MHz to 88MHz VHF Military Dipole Broadband Antenna BNC-Female
Military FT-RF Taiwan
10 out of
10
-
Application:
-
Mechanical Specs
- 30-88 MHz VHF Military Dipole Broadband Antenna BNC-Female
Feature:
- Compact design, lightweight
- Superior performance
- Good appearance design
- Compliant with MIL-Stds
Electrical Specs
|
Frequency Range |
30MHz to 88MHz |
|---|---|
|
V.S.W.R (AVG) |
3.5 :1 |
|
Antenna Type |
Collinear |
| Radiation |
Omni Directional |
|
Gain (Avg) |
-2dbi to 2dbi |
|
Polarization |
Vertical |
|
Average Power |
100 Watts |
|
Vertical Beamwidth |
89Deg |
|
Horizontal Beamwidth |
360 Deg |
|
Impedance |
50 Ohm |
|
Antenna Design |
Dipole |
|
Internal Material |
Copper |
|
Connector |
BNC-Female |
|
Length |
3326.5x140x140mm |
|---|---|
|
Antenna base size |
227x140x140mm |
|
Antenna Weight (N.W) |
4.2Kg |
| Application |
Outdoor |
|
Radome Material |
Paint Green Fiberglass+UV |
|
Base Material |
Copper,nickel-plated Paint Green |
|
Wind Survival |
Greater then 150MPH |
|
Storage Temperature |
-50 to +60 |
|
Operating Temperature |
-50 to +75 |
|
Operating Humidity |
10%~90% non-condensing |
| Storage Humidity |
5%~90% non-condensing |
|
Safety, Emission and other |
RoHS |
