4.8M HF Antenna and 7.5mm Spring Short Antenna Base
Military FT-RF Taiwan
10 out of
10
-
Description
-
Specifications
The family of the HF wideband mobile antennas FT-4 are composed of the antenna sections and the antenna bases suitable for various configurations and antenna heights. The antennas are intended for mobile work with the HF radios.

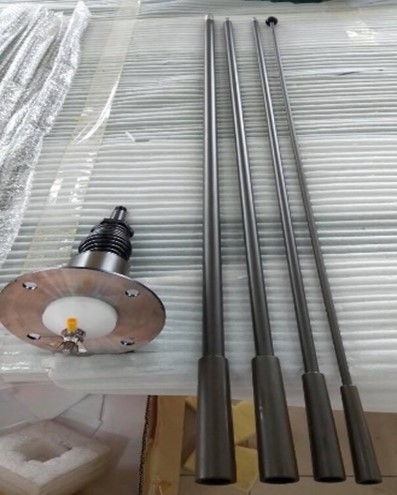

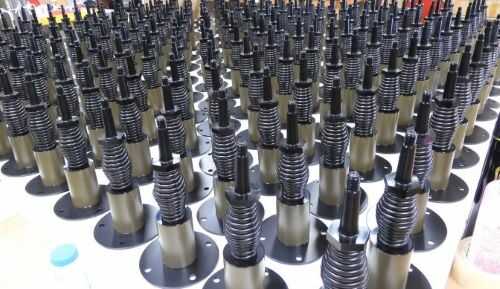

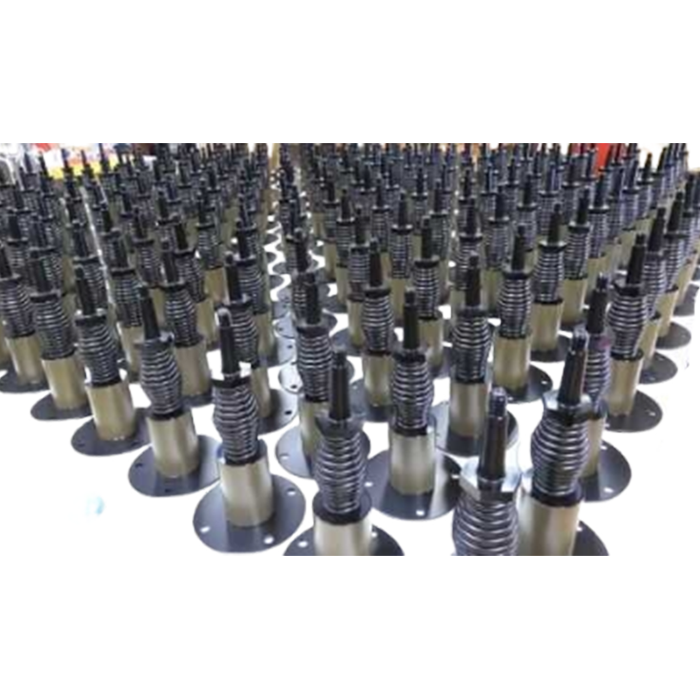

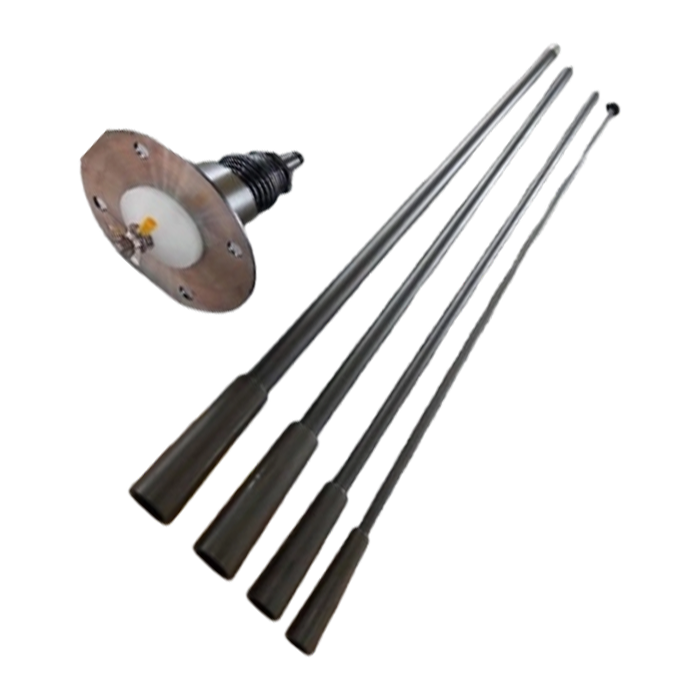

The antenna sections are all 120 (4’) cm long and are made of the strong pultruded composite tube (fiberglass) with male and female joints at both ends. Antenna sections are mounted on the antenna base type Antenna FT-4 (up to 4 sections) made of composite materials and with a biconical SS spring enabling bending of the antenna with the rope horizontally for NVIS applications. The antenna sections are packed in a canvas bag for transportation and storage.
|
Antenna Type |
HF Mobile antenna |
|
|
Frequency range |
1.5MHz - 30 MHz |
|
|
Maximum power |
400-1000 W |
|
|
Wind velocity |
120 km/h |
|
|
Connector |
M8 screw type |
|
|
Antenna Base Weight |
2.4 kg |
|
|
Antenna Section Weight |
Section 1 |
0.2 kg ±5% |
|
Section 2 |
0.30 kg ±5% |
|
|
Section 3 |
0.52 kg ±5% |
|
|
Section 4 |
0.75 kg ±5% |
|
|
Antenna Length |
4.8m ± 40mm |
|
|

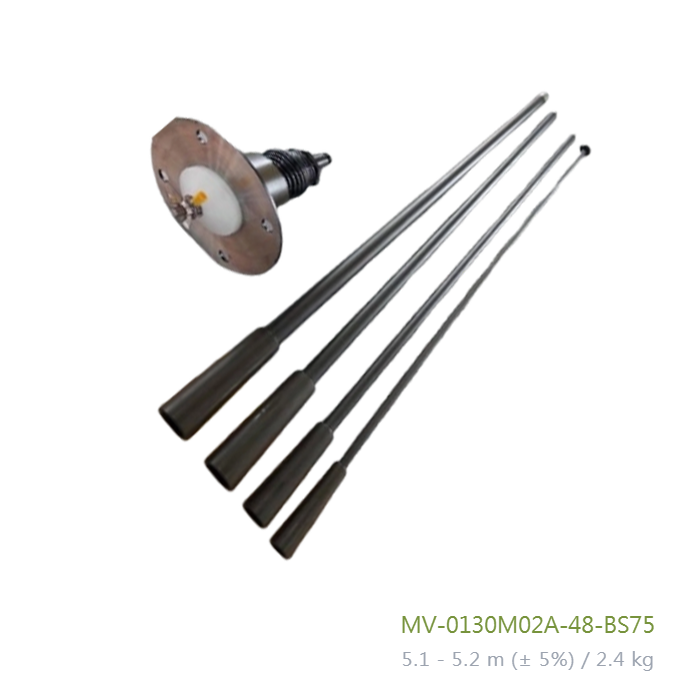

Antenna and base Length |
5.1 to 5.2m± 5% |
|
|
Environmental Test |
MIL-STD-810G method 509.5 |
|
|
Temperature range |
-40 to 70 °C |
|
