30 - 88 MHz Whip Dipole Broadband with GPS Antenna BNC-Female
Military FT-RF Taiwan
10 out of
10
-
Electrical Specs
-
Mechanicals Specs
|
Frequency Range |
30 - 88 MHz |
|
V.S.W.R (MAX) |
3.5 :1 |
|
Radiation |
Omni Directional |
|
Gain (MAX) |
Relative 1/4λ Whip on GP-4~3dB |
|
Polarization |
Vertical |
|
Average Power |
100 CW |
|
Vertical Beam-width |
89 Deg |
|
Horizontal Beam-width |
360 Deg |
|
Impedance |
50 Ohm |
|
Connector |
BNC-Female |
|
Length (MAX) |
3200mm±10mm |
|
Diameter Mounting Base |
Φ140mm±1mm |
|
Antenna Weight (G.W) |
≦4kg |
|
Radome Material |
Paint Green Fiberglass +UV |
|
Base Material |
Copper, Nickel-plated Paint Green |
|
Wind Survival |
Greater then 150MPH |
|
Storage Temperature |
-50 to +60 |
|
Operating Temperature |
-50 to +75 |
|
Operating Humidity |
10%~90% non-condensing |
|
Storage Humidity |
5%~90% non-condensing |
|
Safety, Emission and other |
RoHS |
New Products
Related Products
Antenna Length: 5.1 - 5.2m
Antenna Section Weight: 2Kg
Antenna Base Weight: 2.4 Kg
NEW
MV-20120G-BF-G28-SF is a NEW wideband mobile VHF antenna for the frequency range from 20 to 120 MHZ. The antenna is composed of 4 main parts: antenna base, lower, middle and upper radiating element.
The antenna base is made of aluminum and durable plastic materials. Inside the base is an (optional) GPS antenna.

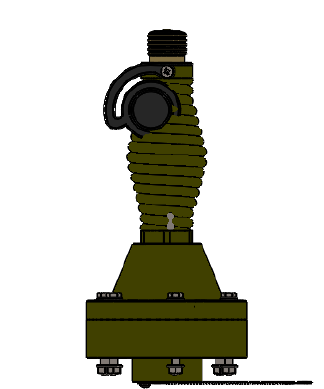

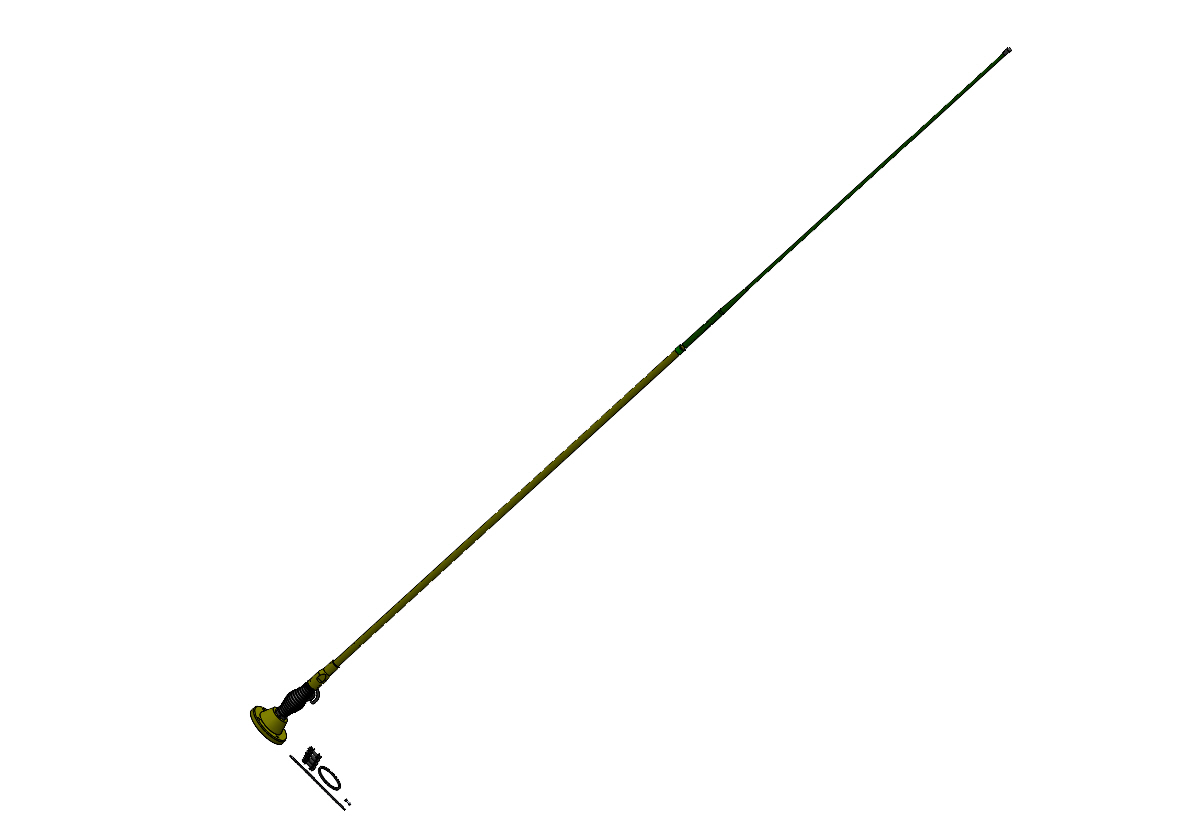

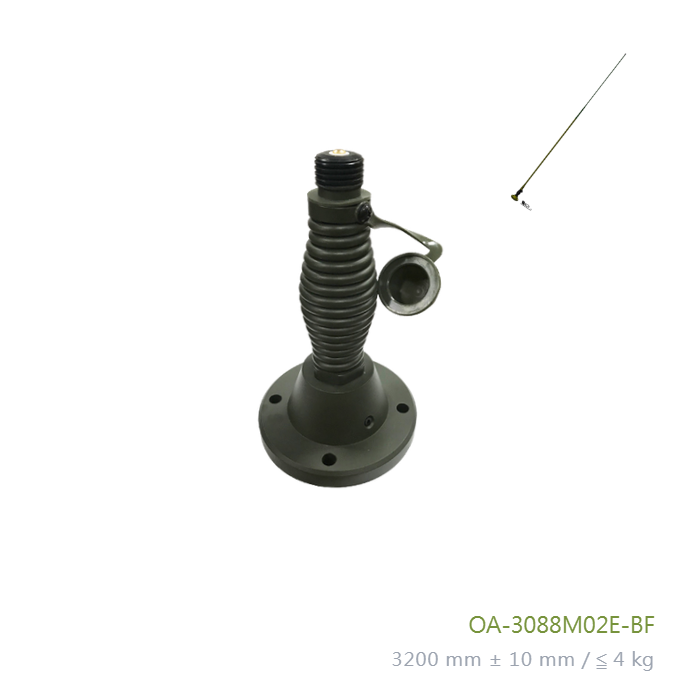

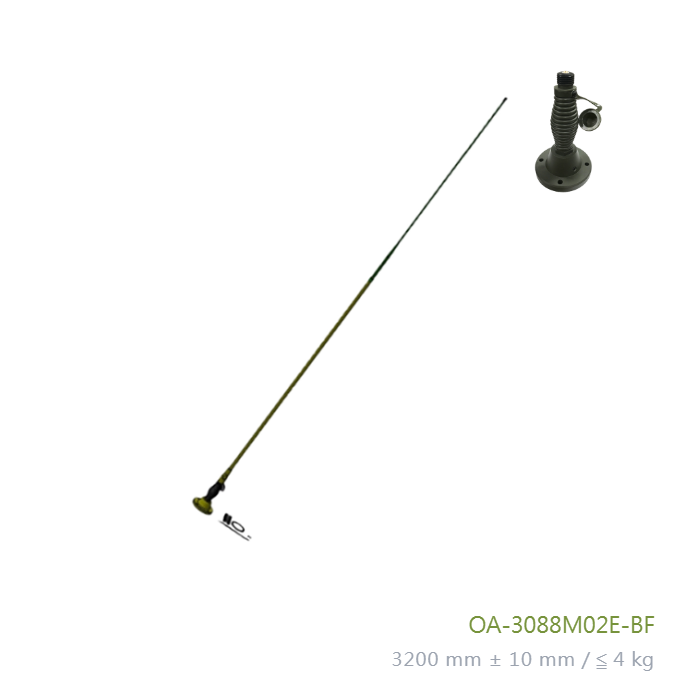

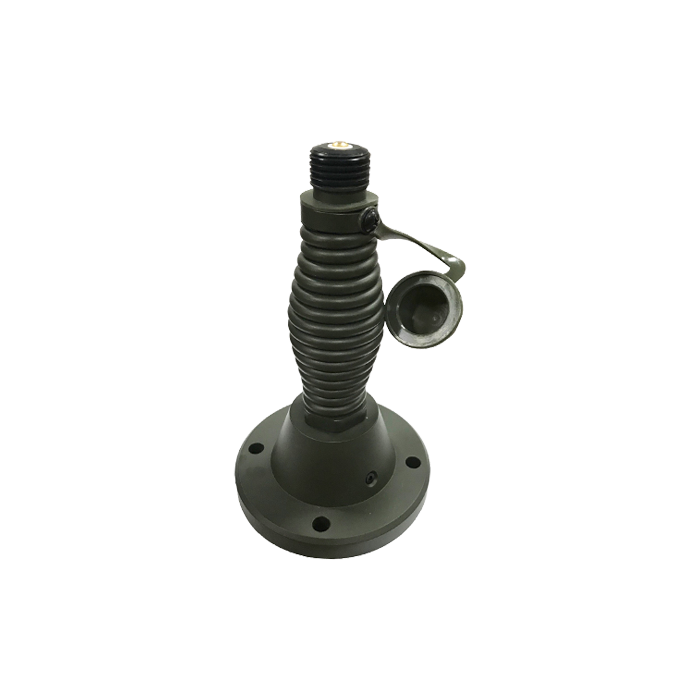

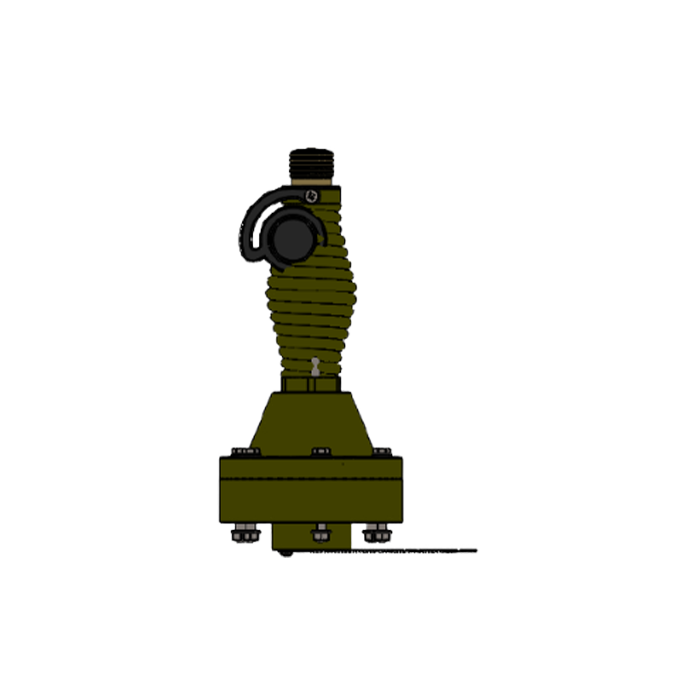

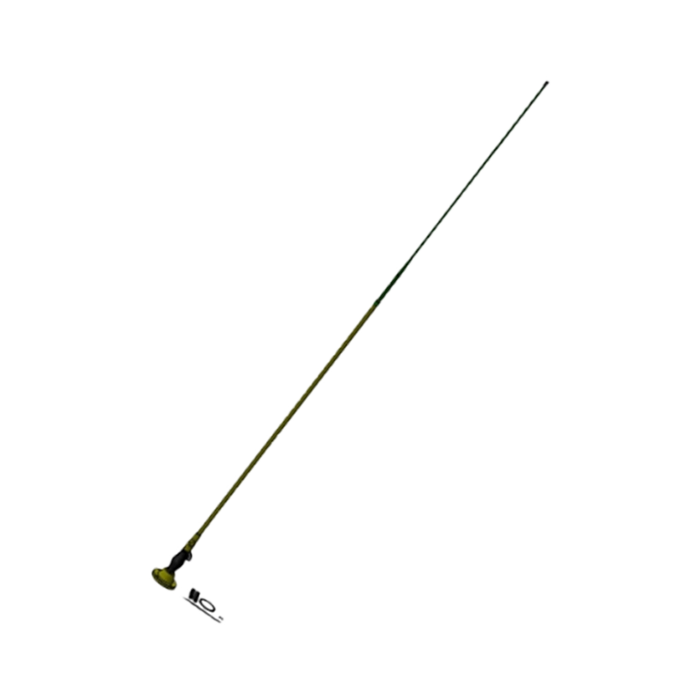

MV-3088M02B-BF (Original Model No. OA-3088M02B-BF) internal antenna is a copper material, and excellent appearance for the stability of fiberglass tubes, the base is produced by the copper nickel-plated body, Green color and coupled with water-resistant viscose and has a good wind resistance and prevention of water entry and the overall structure of anti-ultraviolet.
It is suitable for all kinds of vehicles Jeeps, Trucks, and other vehicles.
