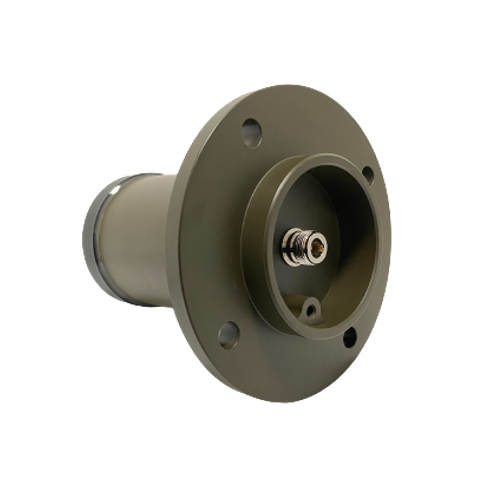

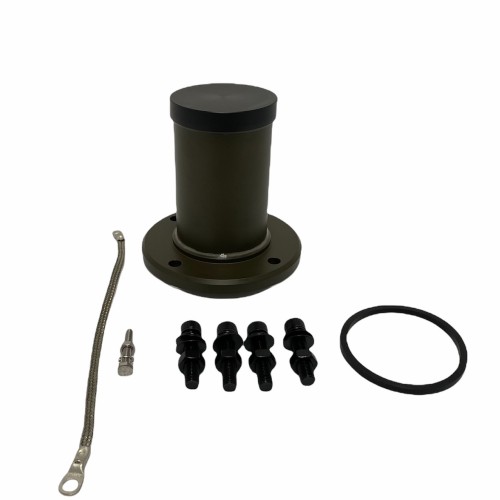

500MHz to 6GHz 3dbi Jamming Antenna For Vehicles N-Female
Military FT-RF Taiwan
10 out of
10
-
Description
-
Electrical Specs
-
Mechanical Specs
-
Video
Application:
- 500MHz to 6GHz 3dbi Jamming Antenna For Vehicles N-Female
- Vehicle-mounted antenna
- Jamming signal
Feature:
- Compact design, lightweight
- Superior performance
- Good appearance design
- Compliant with MIL: 810G
- Provides an ultra-efficient, multi-band jamming
- system designed specifically for installation
- within any suitable vehicle.
- Vehicle-installed
- For military purpose
|
Frequency Range |
300MHz - 6000MHz |
|
V.S.W. R |
>2.5 |
|
Color |
Black/Green |
|
Radiation |
Directional |
|
Gain |
3 dBi |
|
Polarization |
Vertical |
|
Maximum Power |
200W |
|
Vertical Beamwidth |
41 deg |
|
Horizontal Beamwidth |
270 deg |
|
Impedance |
50 Ohm |
|
Connector |
N-Female |
|
Dimension |
150x140x140mm |
|
Antenna Weight (N.W) |
kg |
|
Application |
Indoor/ Outdoor |
|
Storage Temperature |
-40 to +80 |
|
Operating Temperature |
-40 to +60 |
|
Operating Humidity |
10%~90% non-condensing |
|
Storage Humidity |
5%~90% non-condensing |
|
Safety, Emission and other |
RoHS, FCC, CE |
