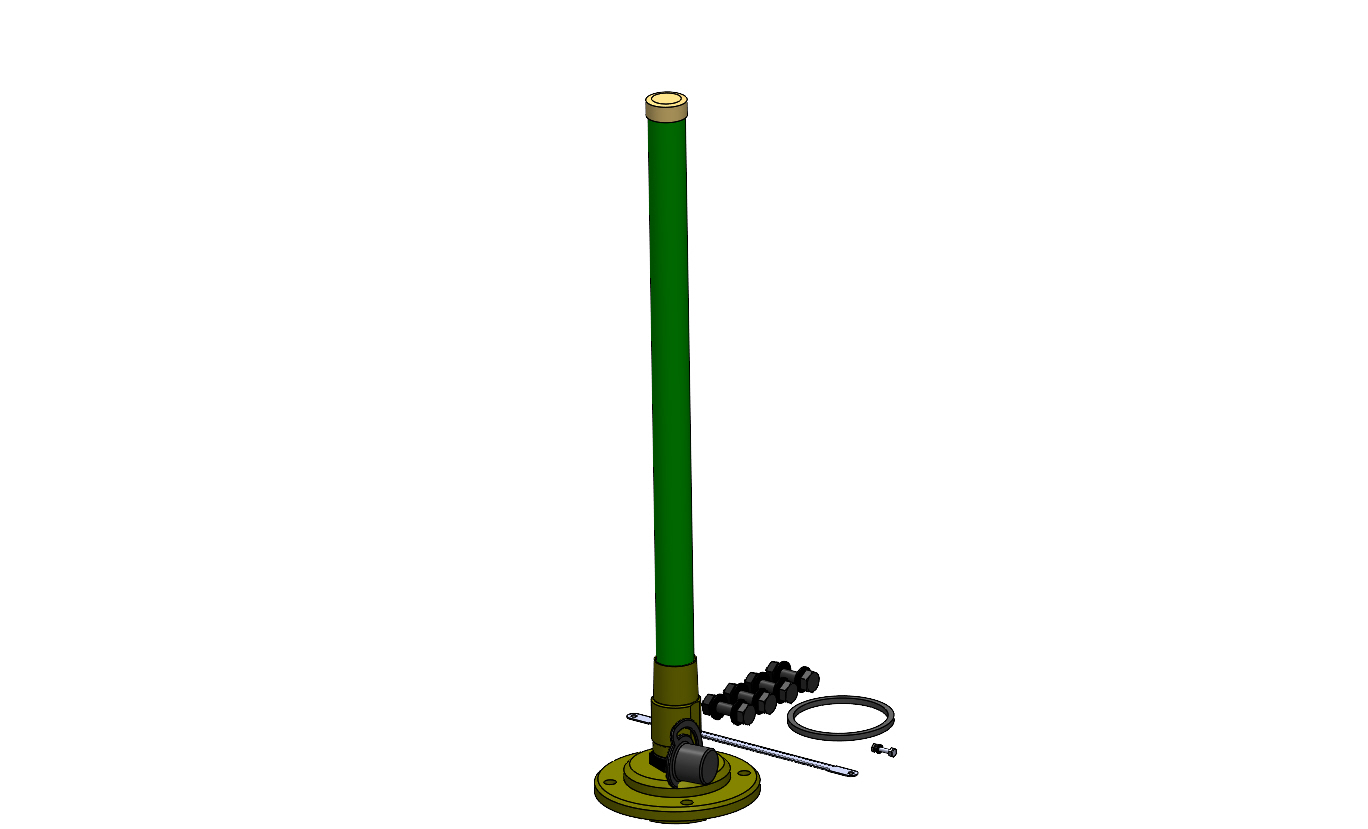

2.0GHz to 2.2GHz 7dbi Jamming Antenna For Vehicles N-Female
Military FT-RF Taiwan
10 out of
10
-
Description & Specification
Application:
- 2.0GHz to 2.2GHz 7dbi Jamming Antenna For Vehicles
- Vehicle mounted antenna
- Jamming system
Feature:
- Compact design, lightweight
- Superior performance
- Good appearance design
- Compliant with MIL-Stds
Specification:
- Frequency range: 2000mhz to 2200MHz
- VSWR:>2.5
- Gain: 7dbi
- MAX power: 200W
- Color: black/green
- Installation size: 114.3 * M10x4
- Connector:N-Female
- Lenght:140x650mm
- -3db beamwith: H:360 V:18
