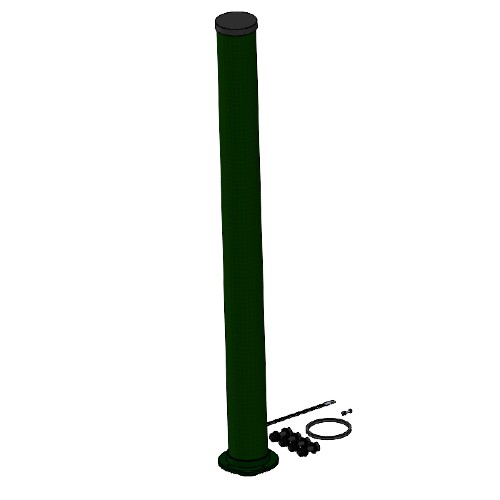

200 MHz to 500 MHz 3dbi Vehicle and base Omnidirectional Jamming Antenna N-Female
Military FT-RF Taiwan
10 out of
10
-
Description & Specification
Application:
- Vehicle and Base Jamming Antenna 200 MHz to 500 MHz 3dbi
- Vehicle-mounted antenna
- Jamming system
Feature:
- Compact design, lightweight
- Superior performance
- Good appearance design
- Compliant with MIL-Stds
Specification:
- Frequency: 200 to 500MHz
- Gain: 3 dbi
- MAX power: 500W (CW)
- -3db vertical polarization: 48deg
- -3db horizontal polarization: 360deg
- Antenna size: 120xL610mm
- Antenna weight: 2.5kg
- Temperature: -40 to +120 degrees
- Humidity: 95%
- Waterproof: IP67
- Compliant with MIL: 810G
- Vibration test: 5.0G
- Salt spray test: 96HR
- Color: black and green
- VSWR:>3.0
