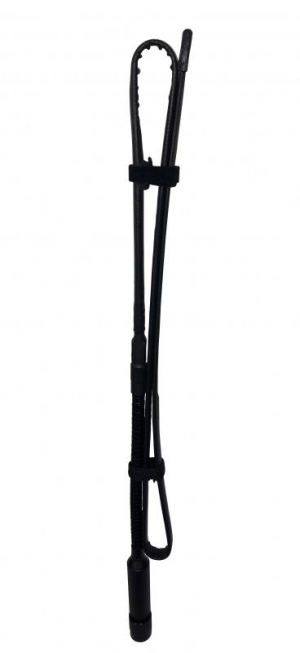

30-108 MHz Pro Military Wideband Whip Antenna TNC-Male
Military FT-RF Taiwan
10 out of
10
-
Description & Specification
Application:
- 30-108 MHz Pro Military Wideband Whip Antenna
- Mobile VHF antenna
Feature:
- Compact design, lightweight
- Superior performance
- Good appearance design
- Compliant with MIL-Stds
Specifications
Electrical specification
| Frequency Range | 30-108 MHz |
| V.S.W.R (AVG) | <3.5 |
| Antenna Type | Monopole |
| Radiation | Omni Directional |
| Gain | -10 ~ 0dBi |
| Polarization | Vertical |
| Maximum Power | 25W |
| Vertical Beam-width | 58 Deg |
| Horizontal Beam-width | 360 Deg |
| Impedance | 50 Ohm |
| Antenna Design | Monopole antenna |
| Internal Material | Copper |
| Connector | BNC-male |
| Mechanical specification |
| Length (MAX) | 1600+-50mm |
| Antenna Weight (G.W) | 600g |
| Times of bending (times): | Greater than 1000 |
| Operating Temperature: | -20degC to +60degC |
| Storage Temperature: | -40degC to +80degC |
| Operating Humidity: | 10%~80% non-condensing |
| Storage Humidity: | 5%~80% non-condensing |
| Safety, Emission and other | RoHS |
