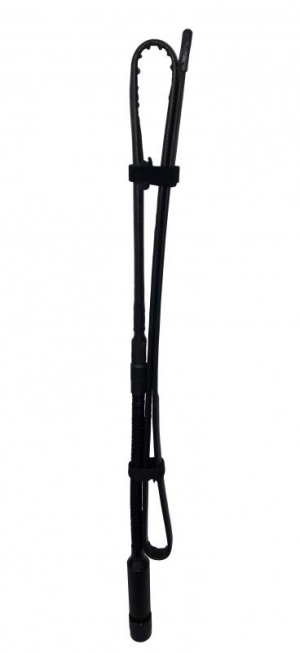

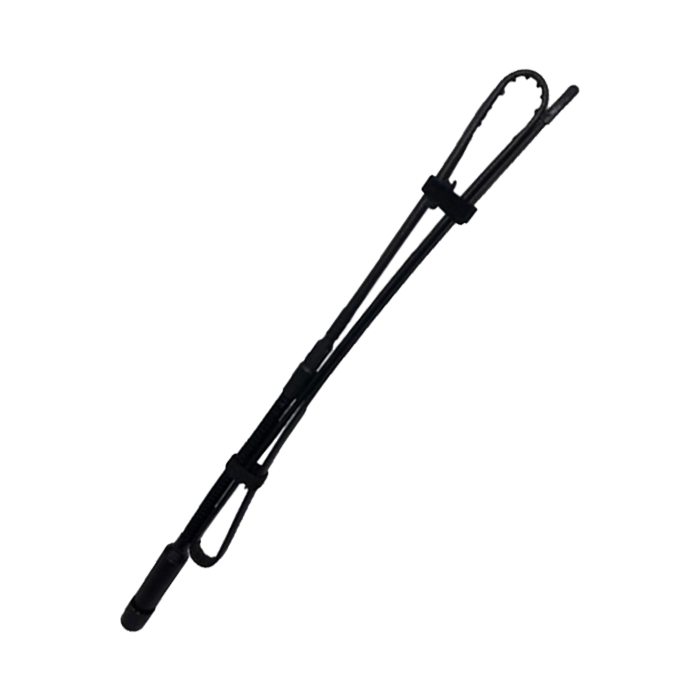

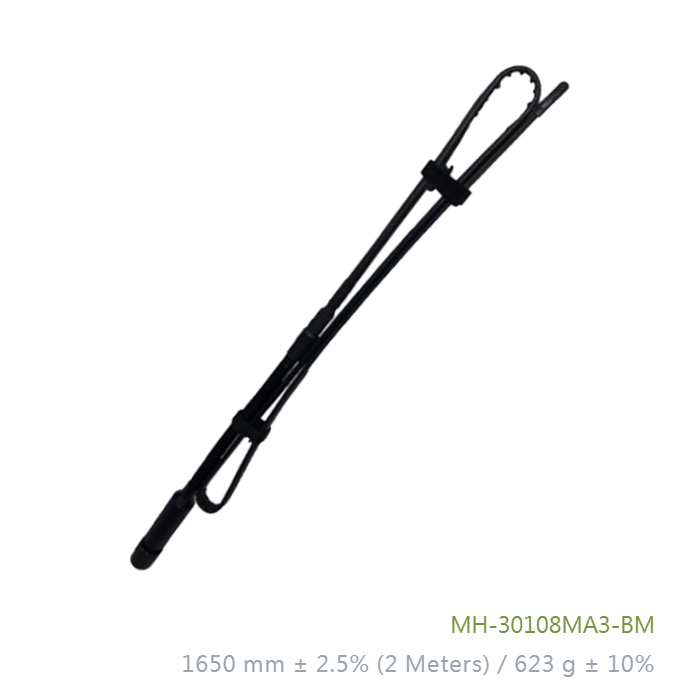

VHF Tape Whip Manpack Antenna 30 MHz to 108 MHz BNC (M) 1.6m
Military FT-RF Taiwan
10 out of
10
-
Description & Specification
Application:
- VHF Tape Whip Manpack Antenna 30 MHz to 108 MHz BNC (M) 1.6m
Feature:
- Compact design, lightweight
- Superior performance
- Good appearance design
- Compliant with MIL-Std
Specification
Frequency Range | 30-108 MHz |
V.S.W.R | < 4.5:1 |
Antenna Type | Monopole |
Radiation | Omni Directional |
Gain | > -10 dBi |
Polarization | Vertical |
Power | >= 20W |
Impedance | 50 Ohm |
Antenna Design | Tape, sleeve covered whip |
Connector | Modified BNC-male |
Length | 1650 mm +- 3.0% |
Antenna Weight (N.W) | 623 gram +- 10% |
Times of bending (times): | Greater than 1000 |
Operating Temperature: | -20deg to +60deg |
Storage Temperature: | -40deg to +80deg |
Operating Humidity: | 10%-80% non-condensing |
Storage Humidity: | 5%-80% non-condensing |
Safety, Emission and other: | RoHS, WEEE, CE, FCC |
