30 MHz to 108 MHz BNC (M) 1M VHF Tape Whip Manpack Antenna
Military FT-RF Taiwan
10 out of
10
-
Description & Specification

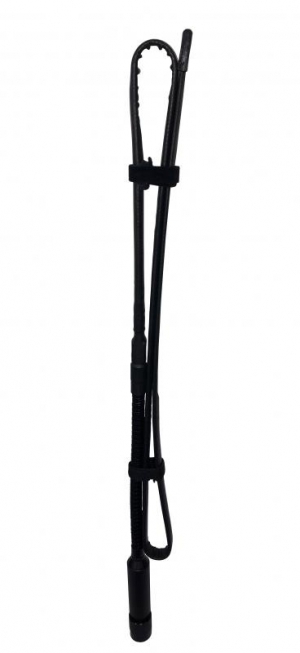

30-108 MHz VHF Tape Whip Manpack Antenna

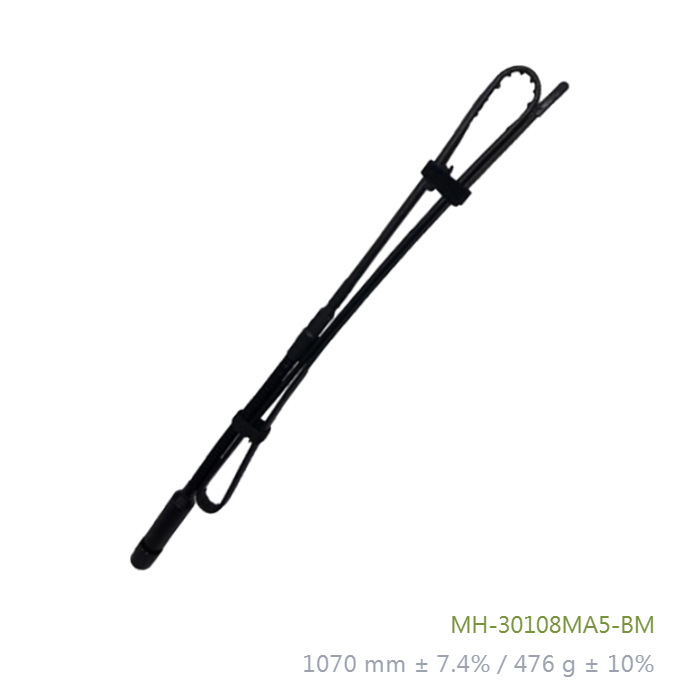

Model: MH-30108MA5-BM | Compact 1-Meter Design | Multilayer Steel Tape
The MH-30108MA5-BM is a compact and lightweight VHF Monopole Whip Antenna designed for manpack radios. At approximately 1070mm in length, it offers a maneuverable alternative for tactical operations. The radiator is constructed from Multilayered Steel Tape, allowing for extreme flexibility (over 1,000 bends) and durability in the field. Fully compliant with MIL-STD requirements, it ensures stable communication in harsh environments.
Technical Specifications
Electrical Performance
| Frequency Range | 30 - 108 MHz (Broadband VHF) |
| V.S.W.R | < 3.5 : 1 |
| Gain | > -20 dBi |
| Power Handling | ≥ 10 Watts |
| Impedance | 50 Ohm |
| Connector | Modified BNC-Male |
Mechanical & Environmental
| Mechanical Length | 1070 mm ± 7.4% (approx. 1 Meter) |
| Antenna Weight | 476 g ± 10% |
| Antenna Design | Tape, Sleeve Covered (Multilayer Steel) |
| Bending Life | > 1000 Times |
| Operating Temperature | -20°C to +60°C |
| Compliance | RoHS, CE, FCC, MIL-Stds |
Key Tactical Features
Compact 1-Meter Design
At 1070mm, this antenna reduces profile and snagging hazards compared to longer whips, improving mobility for professional Tactical Use.
Broadband 30-108 MHz Agility
Provides continuous coverage across the entire VHF tactical band, supporting Signal Management for secure frequency-hopping radios.
Flexible Steel Tape Build
The multilayer steel tape core allows the antenna to be folded repeatedly without damage, ensuring Signal Integrity in rough terrain.
MIL-STD Field Reliability
Engineered to meet military standards for environmental endurance, maintaining absolute Signal Security in any mission-critical operation.
Get a Quote / Customization
Contact us for custom length variations or specialized frequency tuning for your manpack radio platforms.
