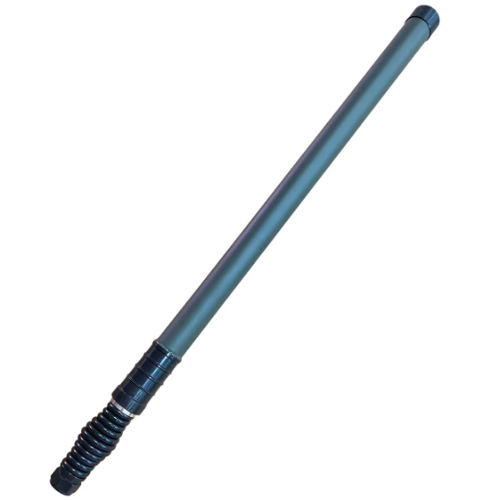

1.4GHz to 1.6GHz 5dbi Omnidirectional Handheld and Manpack Jammer antenna spring design N-Male
Military FT-RF Taiwan
10 out of
10
-
Description & Specification
-
Specifications
Application:
- 1.4GHz to 1.6GHz 5dbi Omnidirectional Handheld and Manpack Jammer antenna spring design
- Jamming system
Feature:
- Compact design, lightweight
- Superior performance
- Good appearance design
- Compliant with MIL-Stds
| Frequency: | 1.4 to 1.6GHz |
| Gain: | 5dbi |
| MAX power: | 120W (CW) |
| 3db vertical polarization | 32deg |
| 3db horizontal polarization: | 360deg |
| Antenna size: | 26xL485mm |
| Antenna weight: | 0.5kg |
| Temperature: | -40 to +120 degrees |
| Humidity: | 95% |
| Waterproof: | IP67 |
| Compliant with MIL: | 810G |
| Vibration test: | 5.0G |
| Salt spray test: | 96HR |
| Color: | black and green |
