1.8GHz to 2.0GHz 5dbi Omnidirectional Handheld and Manpack Jammer antenna with Spring design N-Male
Military FT-RF Taiwan
10 out of
10
-
Description & Specification
-
Specifications
Application:
- ME-1820G05AS-NM - 1.8GHz to 2.0GHz 5dbi Omnidirectional Handheld and Manpack Jammer antenna with Spring design N-Male
Feature:
- Compact design, lightweight
- MIL standard
- Superior performance
- Good appearance design
- RoHS Compliant
| Frequency: | 1.8 to 2.0GHz |
| Gain: | 5dbi |
| MAX power: | 120W (CW) |
| 3db vertical polarization | 52deg |
| 3db horizontal polarization: | 360deg |
| Antenna size: | 26xL325mm |
| Antenna weight: | 0.5kg |
| Temperature: | -40 to +120 degrees |
| Humidity: | 95% |
| Waterproof: | IP67 |
| Compliant with MIL: | 810G |
| Vibration test: | 5.0G |
| Salt spray test: | 96HR |
| Color: | black and green |
| VSWR: | >2.5 |
New Products
Related Products
ME-0406M02AS-NM
400 MHz to 600 MHz 3dbi Omnidirectional Handheld and Manpack Jammer Antenna With Spring
View Details
- Frequency: 400 to 600MHz
- Gain: 2dbi
- MAX power: 250W (CW)
ME-08M1G02S-NM
800MHz to 1000MHz 3dbi Omnidirectional Handheld and Manpack Jamming antenna With Spring
View Details
- Frequency: 800 to 1000MHz
- Gain: 2dbi
- MAX power: 150W (CW)
ME-0608M02AS-NM
400MHz to 600MHz 3dbi Omnidirectional Handheld and Manpack Jammer antenna With Spring
View Details
- Frequency: 400 to 600MHz
- Gain: 2dbi
- MAX power: 250W (CW)
ME-1214G05AS-NM
1200MHz to 1400MHz 5dbi Omnidirectional Handheld and Manpack Jammer antenna With Spring
View Details
- Frequency: 1.2 to 1.4GHz
- Gain: 2dbi
- MAX power: 120W (CW)
ME-3032G05A-NM
2.0GHz to 3.2GHz 5dbi Omnidirectional Handheld and Manpack Jammer antenna With Spring
View Details
ME-1416G05AS-NM
1.4GHz to 1.6GHz 5dbi Omnidirectional Handheld and Manpack Jammer antenna With Spring
View Details
- Length: 485.2 mm
- Weight: 0.5kg
- Connector: N-male
ME-1618G05AS-NM
1.6GHz to 1.8GMHz 5dbi Omnidirectional Handheld and Manpack Jammer antenna With Spring
View Details
- Model: ME-1618G05AS-NM
- Length: 405.2 mm
- Weight: 0.5kg
- Connector: N-male
ME-2022G05AS-NM
2.0GHz to 2.2GHz 5dbi Omnidirectional Handheld and Manpack Jammer antenna With Spring
View Details
Length: 355.2 mm
Weight: 0.43kg
Connector: N-male

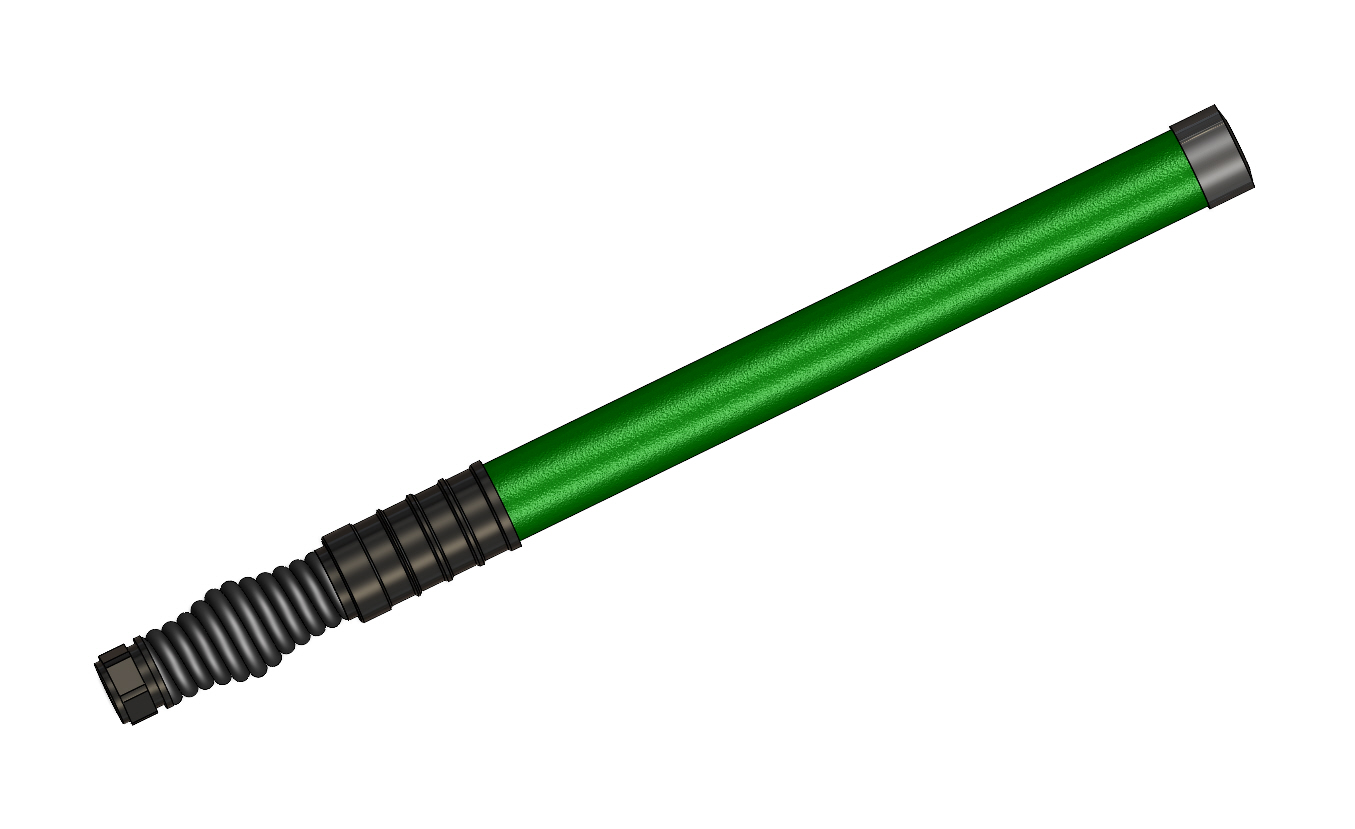

ME-2224G05AS-NM
