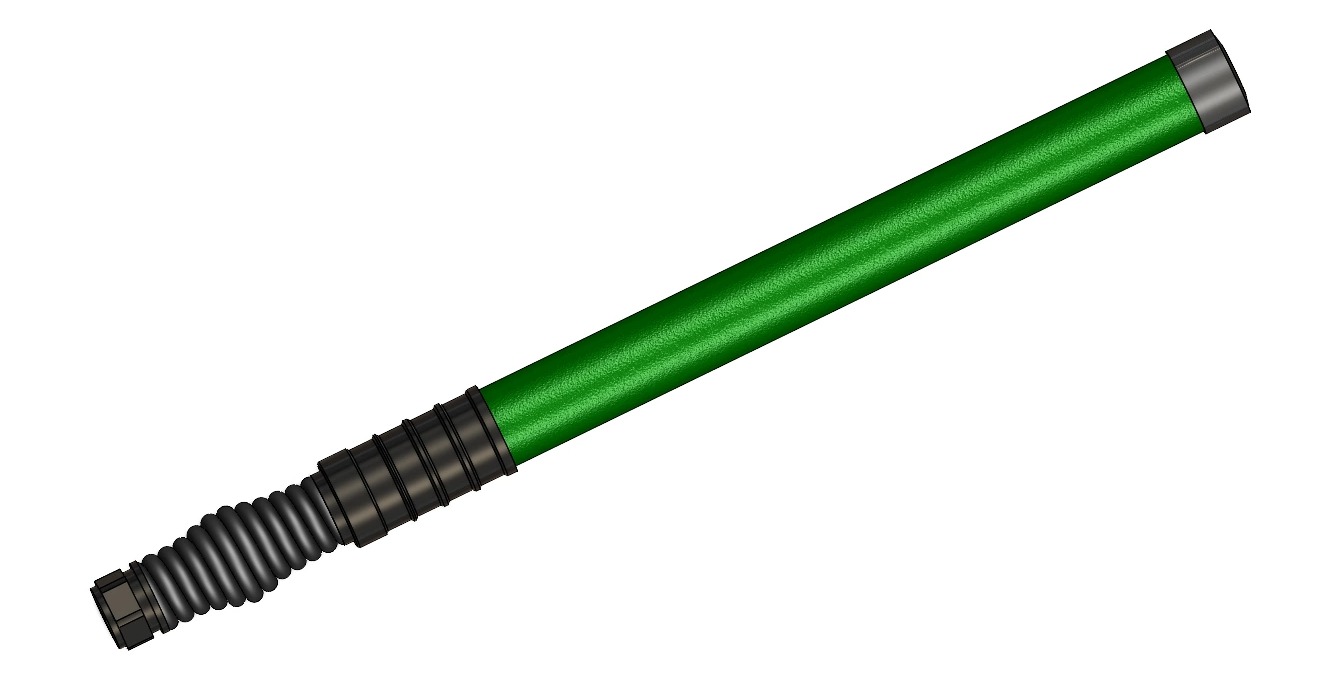

2.0GHz to 2.2GHz 5dbi Omnidirectional Handheld and Manpack Jammer antenna With Spring N-Male
Military FT-RF Taiwan
10 out of
10
-
Description & Specification
Specifications
| Frequency: | 2.0 to 2.2GHz |
| Gain: | 5dbi |
| MAX power: | 100W (CW) |
| 3db vertical polarization | 58deg |
| 3db horizontal polarization: | 360deg |
| Antenna size: | 26xL356mm |
| Antenna weight: | 0.43kg |
| Temperature: | -40 to +120 degrees |
| Humidity: | 95% |
| Waterproof: | IP67 |
| Compliant with MIL: | 810G |
| Vibration test: | 5.0G |
| Salt spray test: | 96HR |
| Color: | black and green |

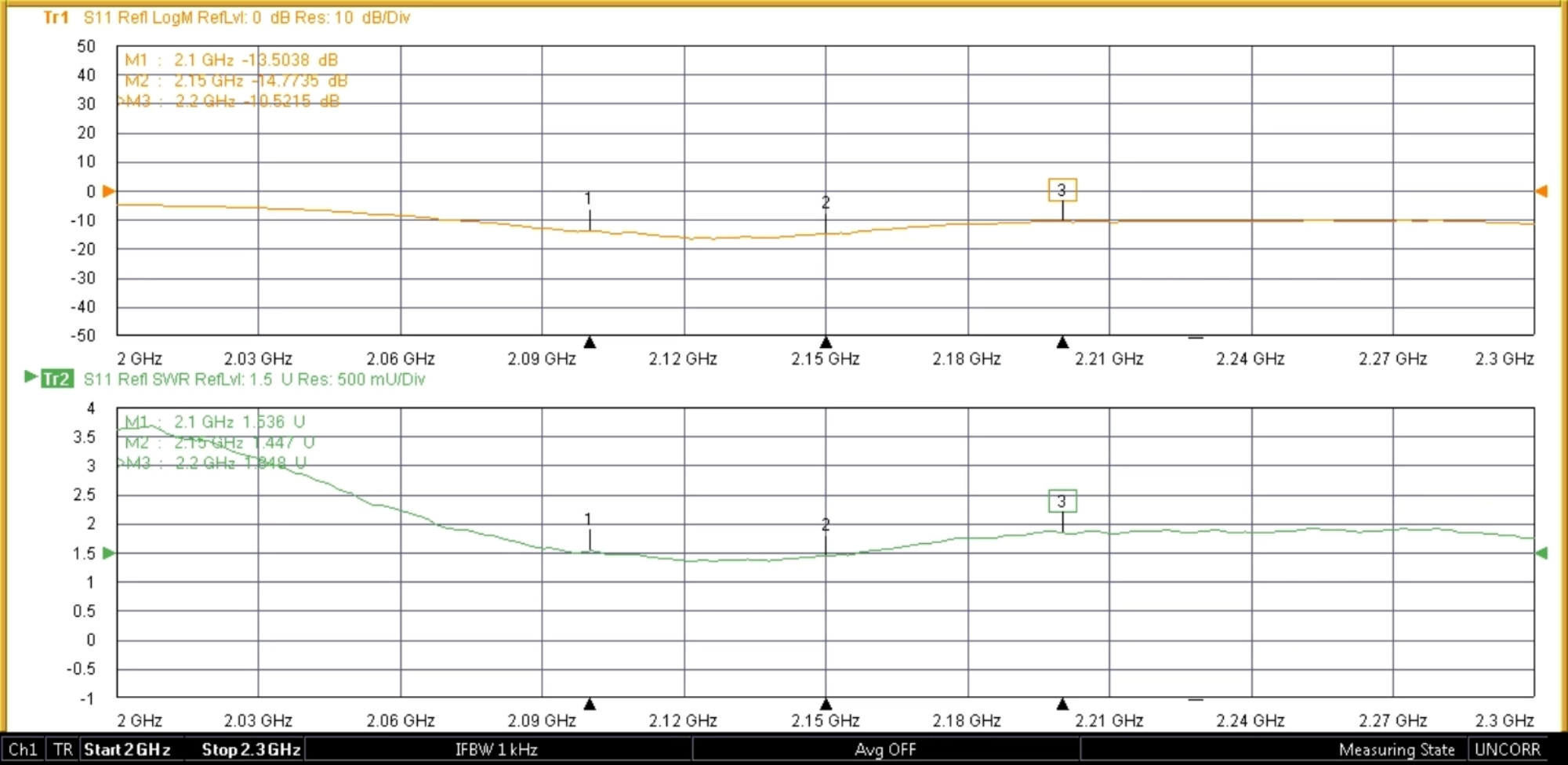

| VSWR: | >2.5 |
