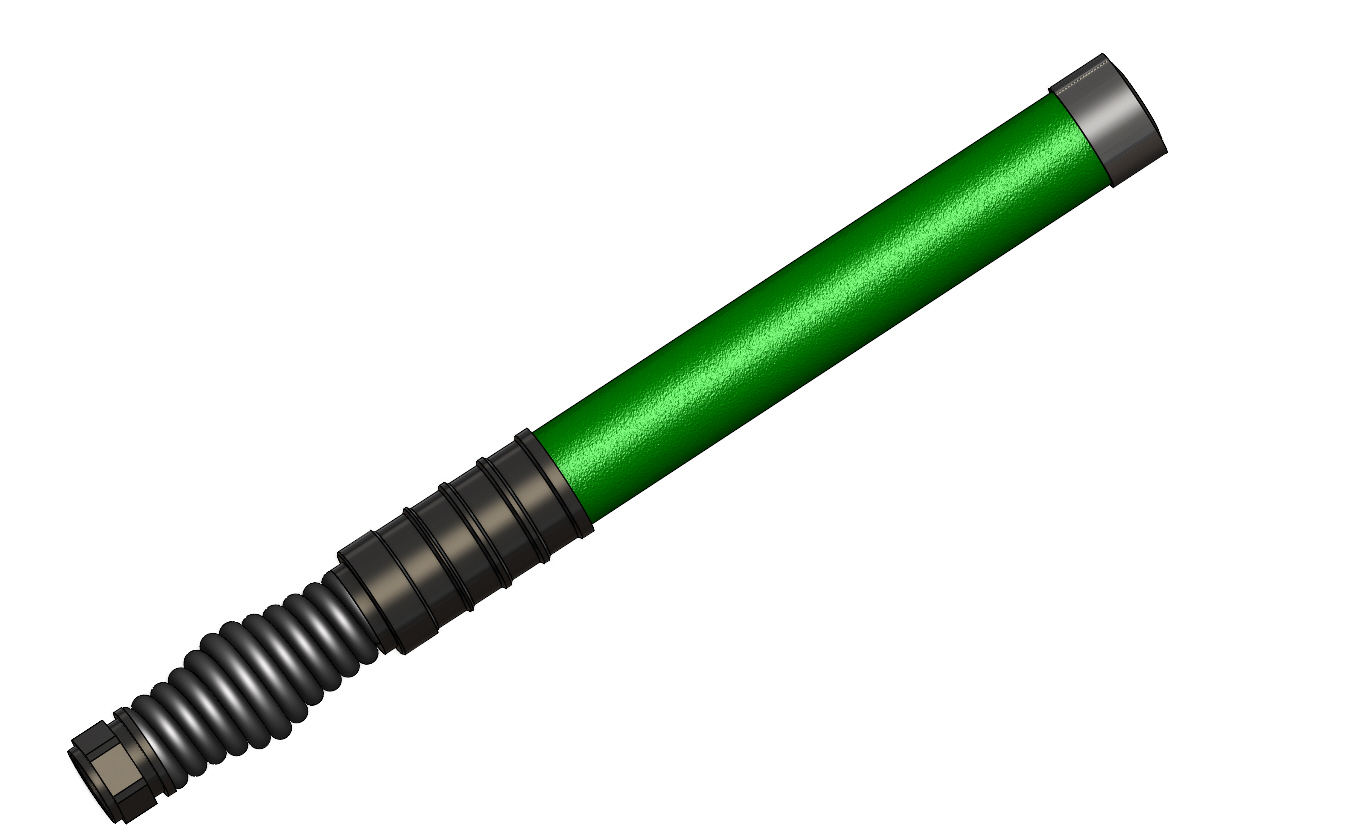

3.2GHz to 3.4GHz 5dbi Omnidirectional Handheld and Manpack Jammer antenna With Spring N-Male
Military FT-RF Taiwan
10 out of
10
-
Specifications
| Frequency: | 3.2 to 3.4GHz |
| Gain: | 5dbi |
| MAX power: | 70W (CW) |
| 3db vertical polarization | 28deg |
| 3db horizontal polarization: | 360deg |
| Antenna size: | 26xL286mm |
| Antenna weight: | 0.4kg |
| Temperature: | -40 to +120 degrees |
| Humidity: | 95% |
| Waterproof: | IP67 |
| Compliant with MIL: | 810G |
| Vibration test: | 5.0G |
| Salt spray test: | 96HR |
| Color: | black and green |
| VSWR: | >2.5 |
