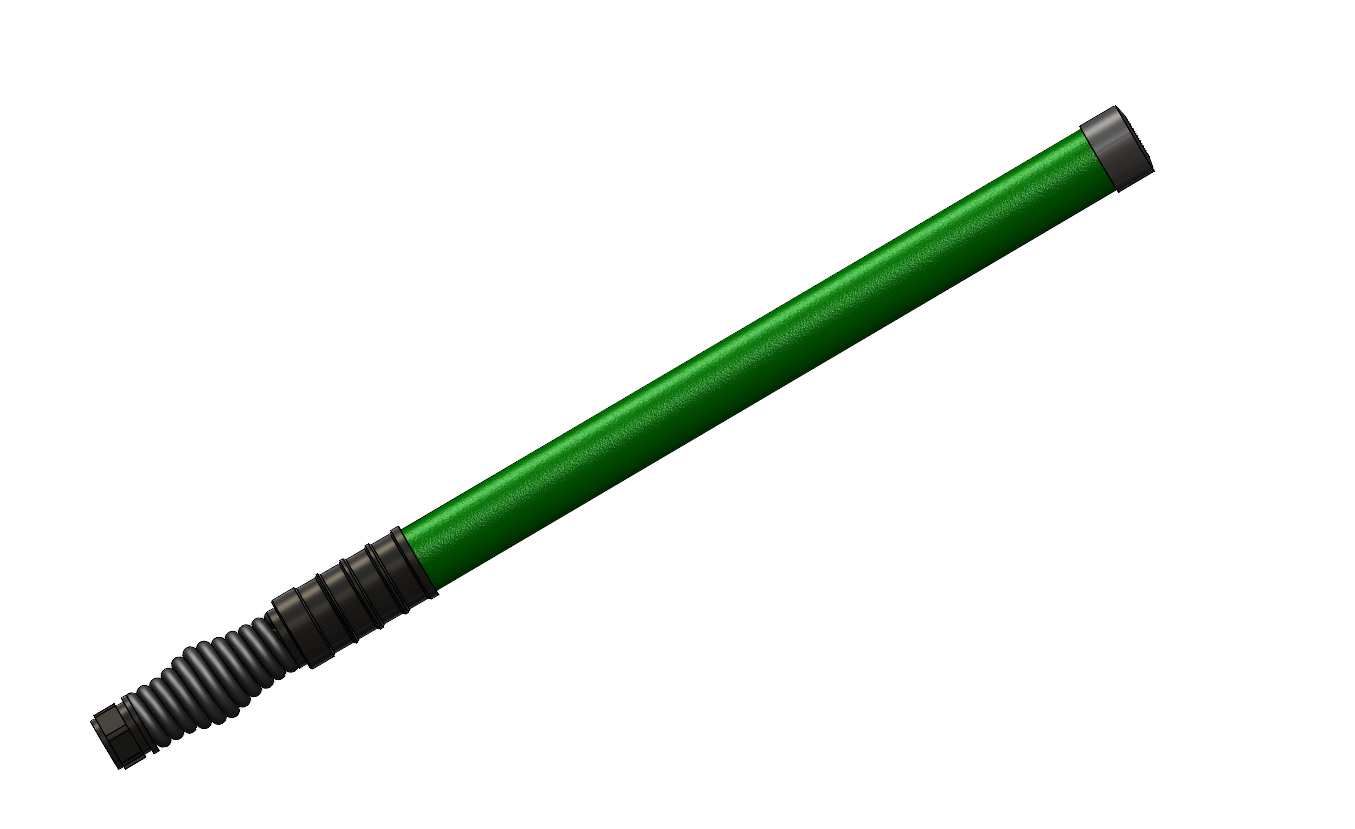

1.6GHz to 1.8GMHz 5dbi Omnidirectional Handheld and Manpack Jammer antenna With Spring

1.6GHz to 1.8GMHz 5dbi Omnidirectional Handheld and Manpack Jammer antenna With Spring N-Male Design

Model No: ME-1618G05AS-NM

Mechanical Drawing: Download

  • Model: ME-1618G05AS-NM
  • Length: 405.2 mm
  • Weight: 0.5kg
  • Connector: N-male
Quantity:
INQUIRY

  • Description & Specification

  • Specifications

Application:

  • 1.6GHz to 1.8GMHz 5dbi Omnidirectional Handheld and Manpack Jammer antenna With Spring design
  • Jamming system

Feature:

  • Compact design, lightweight
  • Superior performance
  • Good appearance design
  • Compliant with MIL-Stds
Frequency:  1.6 to 1.8GHz
Gain: 5dbi
MAX power:  120W (CW)
3db vertical polarization 54deg
3db horizontal polarization:  360deg
Antenna size:  26xL406mm
Antenna weight:  0.5kg
Temperature:   -40 to +120 degrees
Humidity:  95%
Waterproof:  IP67
Compliant with MIL:   810G
Vibration test:  5.0G
Salt spray test:   96HR
Color:  black and green
