2.0GHz to 3.2GHz 5dbi Omnidirectional Handheld and Manpack Jammer antenna With Spring N-Male
Military FT-RF Taiwan
10 out of
10
-
Specifications
| Frequency: | 3.0 to 3.2GHz |
| Gain: | 5dbi |
| MAX power: | 70W (CW) |
| 3db vertical polarization | 28deg |
| 3db horizontal polarization: | 360deg |
| Antenna size: | 26xL356mm |
| Antenna weight: | 0.4kg |
| Temperature: | -40 to +120 degrees |
| Humidity: | 95% |
| Waterproof: | IP67 |
| Compliant with MIL: | 810G |
| Vibration test: | 5.0G |
| Salt spray test: | 96HR |
| Color: | black and green |
| VSWR: | >2.5 |
New Products
Related Products
ME-0406M02AS-NM
400 MHz to 600 MHz 3dbi Omnidirectional Handheld and Manpack Jammer Antenna With Spring
View Details
- Frequency: 400 to 600MHz
- Gain: 2dbi
- MAX power: 250W (CW)
ME-08M1G02S-NM
800MHz to 1000MHz 3dbi Omnidirectional Handheld and Manpack Jamming antenna With Spring
View Details
- Frequency: 800 to 1000MHz
- Gain: 2dbi
- MAX power: 150W (CW)
ME-0608M02AS-NM
400MHz to 600MHz 3dbi Omnidirectional Handheld and Manpack Jammer antenna With Spring
View Details
- Frequency: 400 to 600MHz
- Gain: 2dbi
- MAX power: 250W (CW)
ME-1214G05AS-NM
1200MHz to 1400MHz 5dbi Omnidirectional Handheld and Manpack Jammer antenna With Spring
View Details
- Frequency: 1.2 to 1.4GHz
- Gain: 2dbi
- MAX power: 120W (CW)
ME-3032G05A-NM
2.0GHz to 3.2GHz 5dbi Omnidirectional Handheld and Manpack Jammer antenna With Spring
View Details
ME-1416G05AS-NM
1.4GHz to 1.6GHz 5dbi Omnidirectional Handheld and Manpack Jammer antenna With Spring
View Details
- Length: 485.2 mm
- Weight: 0.5kg
- Connector: N-male
ME-1618G05AS-NM
1.6GHz to 1.8GMHz 5dbi Omnidirectional Handheld and Manpack Jammer antenna With Spring
View Details
- Model: ME-1618G05AS-NM
- Length: 405.2 mm
- Weight: 0.5kg
- Connector: N-male
ME-1820G05AS-NM
1.8GHz to 2.0GHz 5dbi Omnidirectional Handheld and Manpack Jammer antenna with Spring
View Details
- Length: 397.2 mm
- Weight: 0.5kg
- Connector: N-male
ME-2022G05AS-NM
2.0GHz to 2.2GHz 5dbi Omnidirectional Handheld and Manpack Jammer antenna With Spring
View Details
Length: 355.2 mm
Weight: 0.43kg
Connector: N-male
ME-2224G05AS-NM
2.2GHz to 2.4GHz 5dbi Omnidirectional Handheld and Manpack Jammer antenna With Spring
View Details
Length: 355.2 mm
Weight: 0.43kg
Connector: N-Male
ME-2426G05AS-NM
2.4GHz to 2.6GHz 5dbi Omnidirectional Handheld and Manpack Jammer antenna With Spring
View Details
Length: 345.2 mm
Weight: 0.41kg
Connector: N-male
ME-2830G05A-NM
2.8GHz to 3.0GHz 5dbi Omnidirectional Handheld and Manpack Jammer antenna With Spring
View Details
Length: 300.2 mm
Weight: 0.4kg
Connector: N-male
ME-3234G05A-NM
3.2GHz to 3.4GHz 5dbi Omnidirectional Handheld and Manpack Jammer antenna With Spring
View Details
Length: 285.2 mm
Weight: 0.4kg
Connector: N-male
ME-3436G05AS-NM
3.4GHz to 3.6GHz 5dbi Omnidirectional Handheld and Manpack Jammer antenna With Spring
View Details
Length: 270.2 mm
Weight: 0.4kg
Connector: N-male
ME-3638G05AS-NM
3.6GHz to 3.8GHz 5dbi Omnidirectional Handheld and Manpack Jammer antenna With Spring
View Details
Length: 285.2 mm
Weight: 0.39kg
Connector: N-male

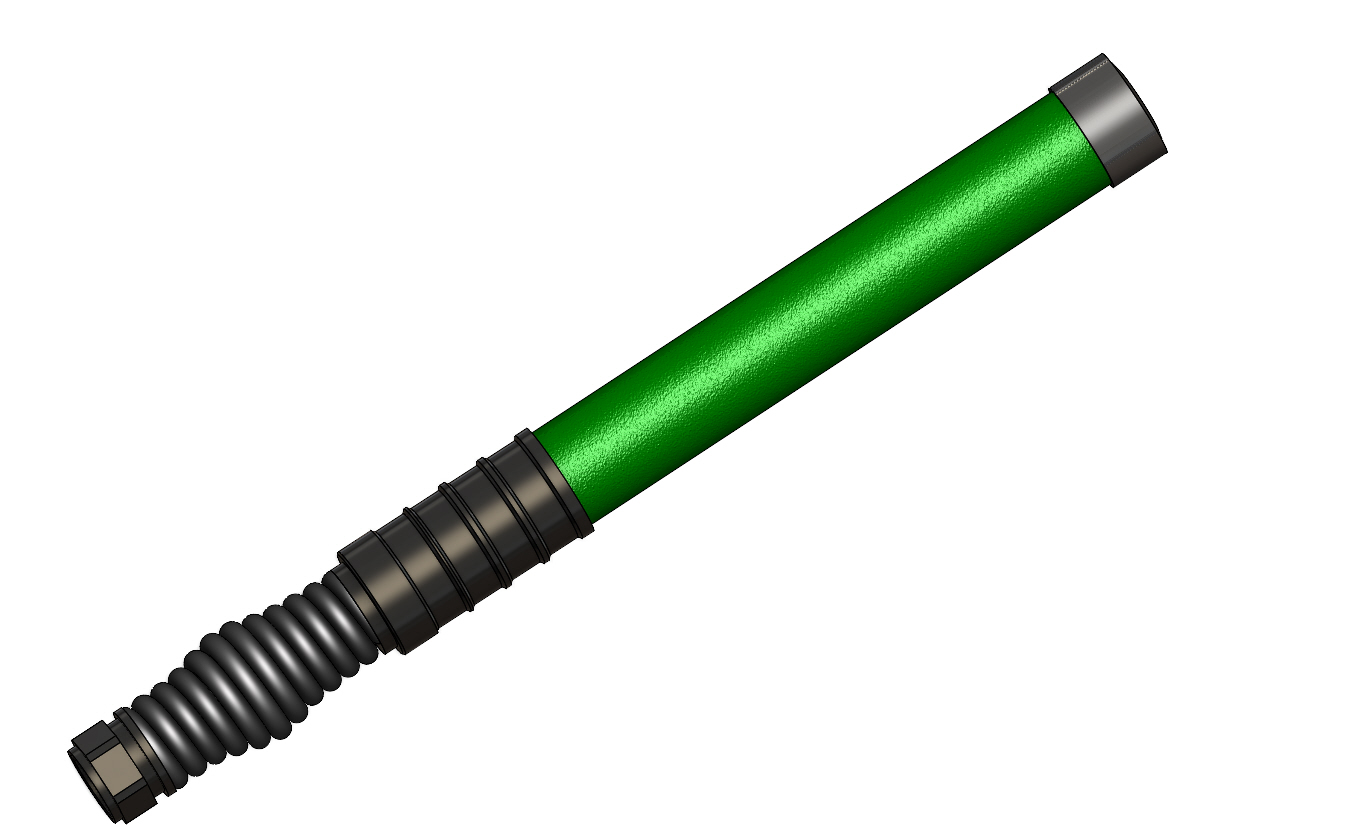

ME-3840G05AS-NM
