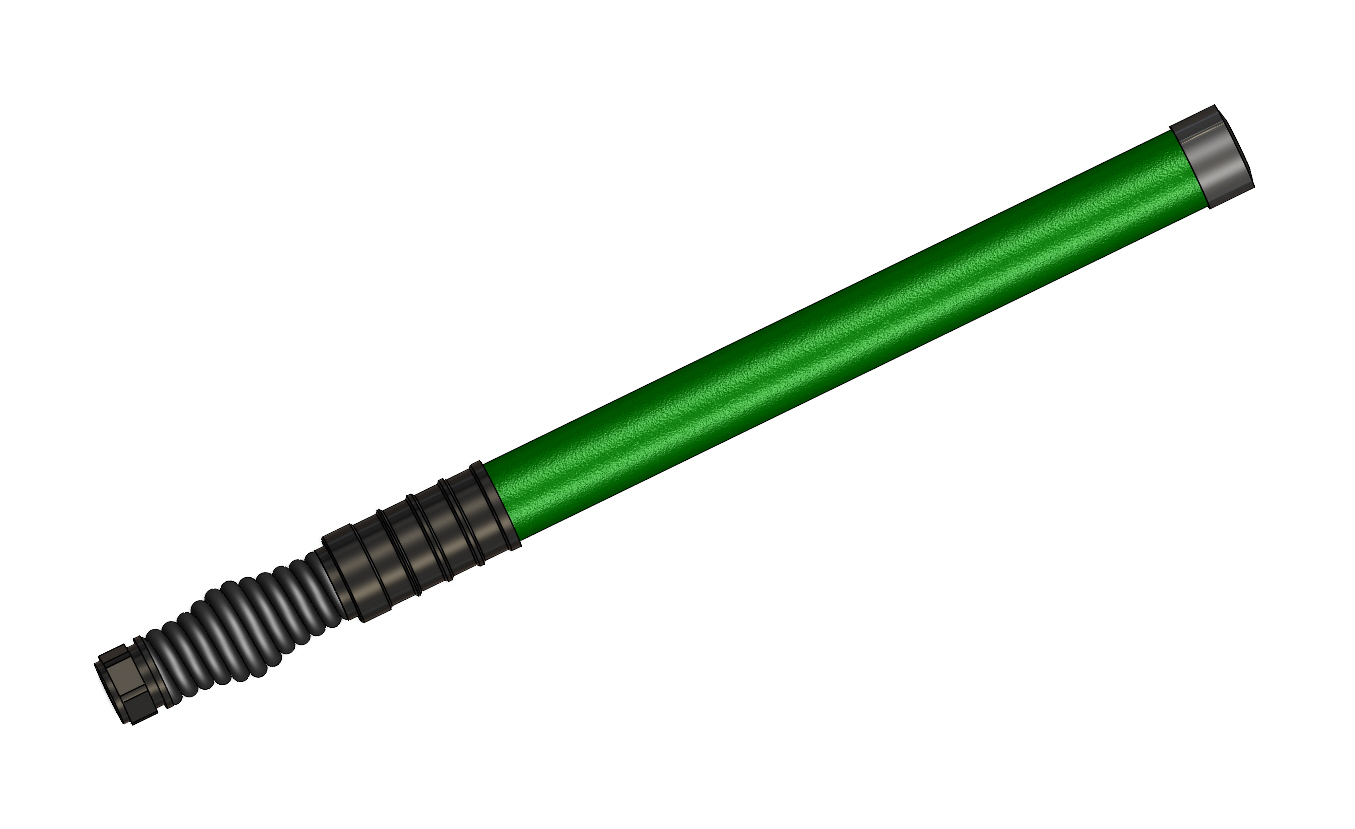

2.2GHz to 2.4GHz 5dbi Omnidirectional Handheld and Manpack Jammer antenna With Spring

2.2GHz to 2.4GHz 5dbi Omnidirectional Handheld and Manpack Jammer antenna With Spring N-Male

Model No: ME-2224G05AS-NM

Download Datasheet: Download

Length: 355.2 mm
Weight: 0.43kg
Connector: N-Male

Quantity:
INQUIRY

  • Description & Specification

Specifications

Frequency:  2.2 to 2.4GHz
Gain: 5dbi
MAX power:  100W (CW)
3db vertical polarization 52deg
3db horizontal polarization:  360deg
Antenna size:  26xL356mm
Antenna weight:  0.43kg
Temperature:   -40 to +120 degrees
Humidity:  95%
Waterproof:  IP67
Compliant with MIL:  810G
Vibration test:  5.0G
Salt spray test:   96HR
Color:  black and green
VSWR: >2.5
