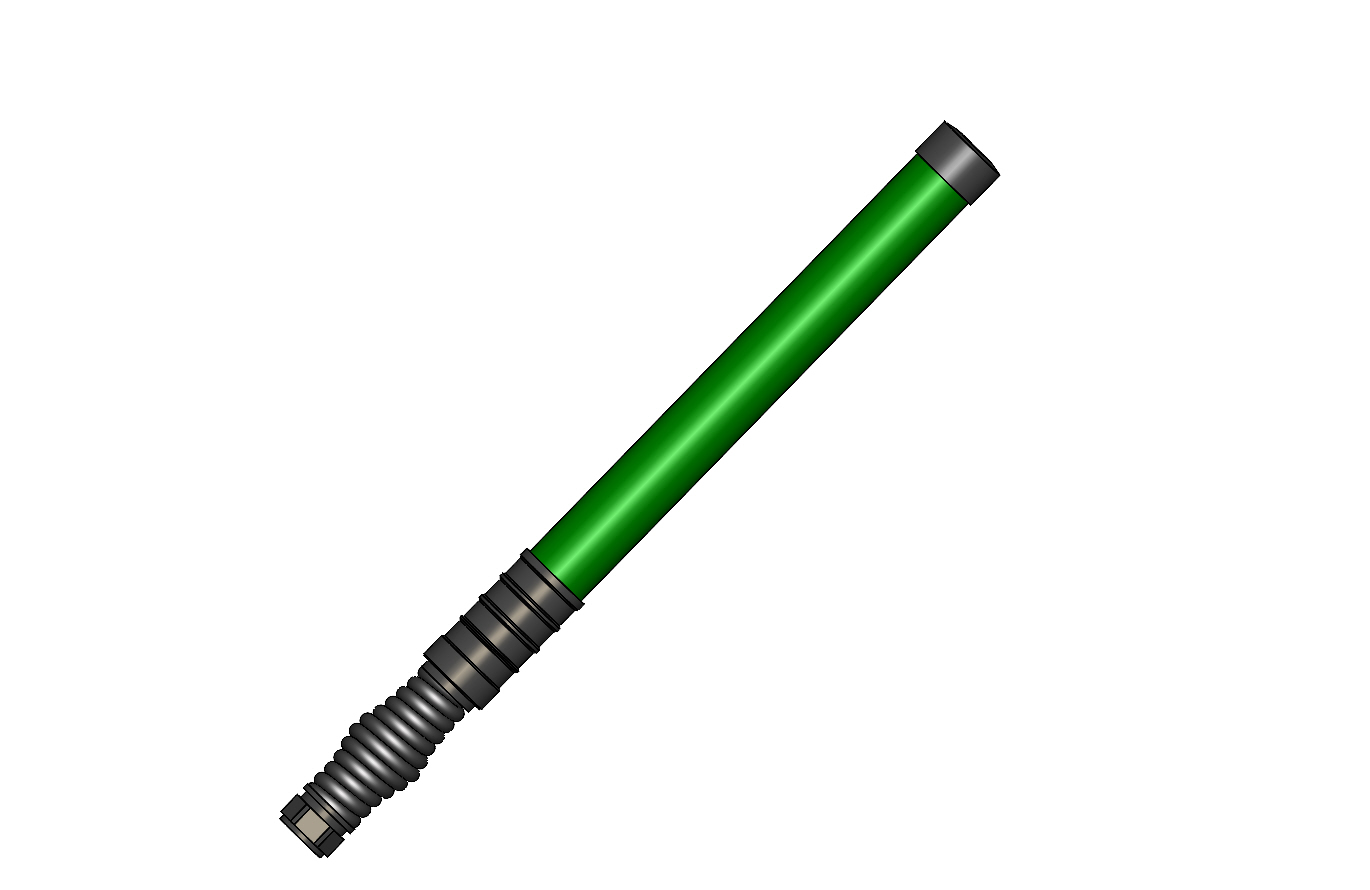

2.6GHz to 2.8GHz 5dbi Omnidirectional Handheld and Manpack Jammer antenna With Spring N-Male
Military FT-RF Taiwan
10 out of
10
-
Description & Specification
-
Specifications
Application:
- 2.6GHz to 2.8GHz 5dbi Omnidirectional Handheld and Manpack Jammer antenna With Spring N-Male
Feature:
- Compact design, lightweight
- Superior performance
- Good appearance design
- Compliant with MIL-Stds
| Frequency: | 2.6 to 2.8GHz |
| Gain: | 5dbi |
| MAX power: | 100W (CW) |
| 3db vertical polarization | 28deg |
| 3db horizontal polarization: | 360deg |
| Antenna size: | 26xL326mm |
| Antenna weight: | 0.41kg |
| Temperature: | -40 to +120 degrees |
| Humidity: | 95% |
| Waterproof: | IP67 |
| Compliant with MIL: | 810G |
| Vibration test: | 5.0G |
| Salt spray test: | 96HR |
| Color: | black and green |
| VSWR: | >2.5 |
