1.4 to 1.6GHz 8dbi High Power Panel Directional Antenna SMA-Female
Military FT-RF Taiwan
10 out of
10
-
Description & Specification

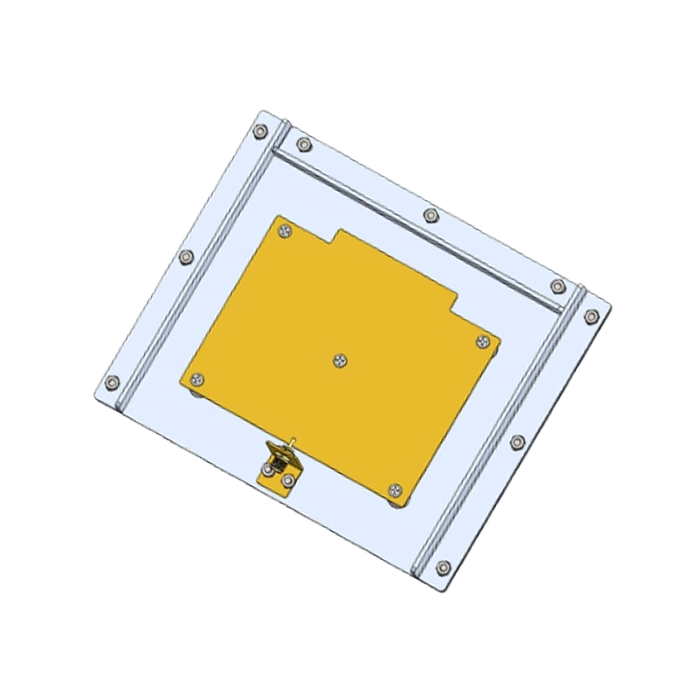

1.4-1.6 GHz 300W High-Power Directional Antenna
Model: MP-1416G08A-SF | 8 dBi Gain | 300W CW | SMA-Female Patch Antenna
The MP-1416G08A-SF is a high-performance Directional Patch Antenna specifically engineered for mission-critical operations requiring targeted high-power handling within the 1.4 GHz to 1.6 GHz L-Band spectrum. Delivering a robust 300 Watts (CW) power capacity and a concentrated 8 dBi directional gain, this antenna maximizes link stability for UAV control, point-to-point tactical communications, and broadband signal management. Its compact, low-profile design ensures superior mechanical survival and low visual signature, making it the primary choice for mobile command platforms and field-deployed electronic dominance systems.
Core Capabilities & Functions
Electrical Performance
| Frequency Range | 1.4 GHz - 1.6 GHz |
| Gain | 8 dBi |
| Maximum Power | 300 Watts (Continuous Wave) |
| Polarization | Vertical or Horizontal |
Mechanical & Environmental Specs

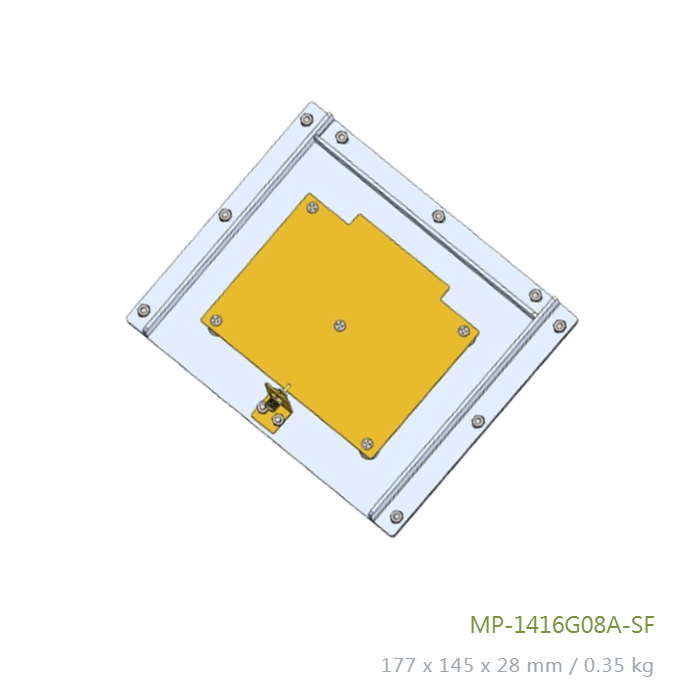

| Dimensions (LxWxH) | 177 x 145 x 28 mm |
| Net Weight | 0.35 kg |
| Antenna Type | Directional Patch / Panel |
| Durability | Compliant with MIL-STD Standards |
Key Operational Features
High-Power 300W CW
Engineered to withstand the intense thermal load of 300W continuous wave transmission, ideal for long-range electronic management and dominance.
Precision Beam Concentration
Concentrates energy with a 58°/46° beam-width, significantly enhancing directional range and link reliability while reducing interference from other sectors.
Low-Profile Tactical Patch
The compact 28mm thickness provides a low visual profile and minimizes wind load, perfect for integration on vehicle panels or portable tripods.
Flexible Polarization
Capable of both Vertical and Horizontal polarization to match specific mission requirements and environmental conditions for optimal throughput.
Get a Quote / Customization
Contact us for custom mounting brackets, alternative connector types (N/TNC), or specific tactical camouflage finishes.
