3.0-3.2 GHz High-End Manpack Antenna (Spring Base)
S-Band Radar | 5dBi Gain | 70W Power | IP67 & MIL-STD-810G

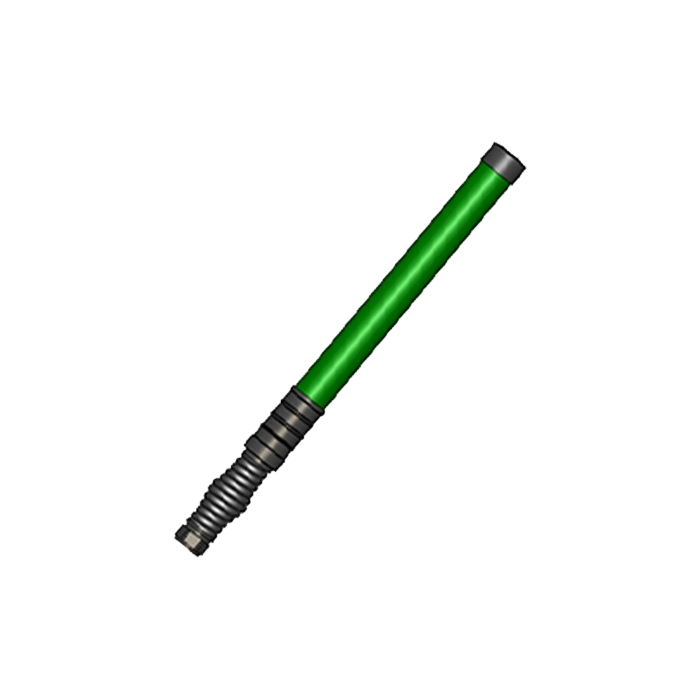

The MH-3032G05A-NM is a high-performance Manpack Antenna designed for the 3.0 GHz to 3.2 GHz S-Band, a frequency range critical for radar and specialized maritime communications. It features a rugged Spring-Loaded Base to withstand mechanical shock and rough handling. With a length of 295.2mm, it offers a robust 5 dBi gain and handles high power input up to 70 Watts (CW). Engineered for extreme environments, it is IP67 waterproof, compliant with MIL-STD-810G, and operates in temperatures up to +120°C.
Technical Specifications
Electrical Specifications
| Model Number | MH-3032G05A-NM |
| Frequency Range | 3.0 - 3.2 GHz (S-Band) |
| Gain | 5 dBi |
| V.S.W.R | ≤ 2.5 : 1 |
| Max Power | 70 Watts (CW) |
| Polarization | Vertical |
| Beamwidth | H: 360° / V: 28° |
| Connector | N-Male |
Mechanical & Environmental Specifications

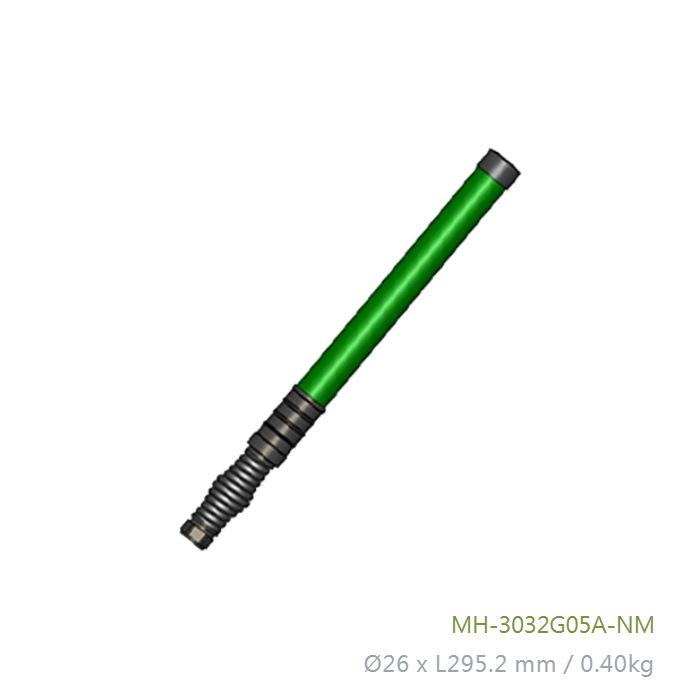

| Dimensions | Ø26 x L295.2 mm |
| Weight | 0.40 kg |
| Spring Base | Yes (Shock Absorption) |
| Waterproof Rating | IP67 |
| Compliance | MIL-STD-810G |
| Operating Temp | -40°C to +120°C (Extreme Heat) |
| Salt Spray Test | 96 Hours |
| Vibration Test | 5.0 G |
| Color | Black and Green |
Key Features (Model Specific)
S-Band Radar Optimization
Specifically tuned for the 3.0-3.2 GHz band, suitable for S-band radar systems, maritime navigation, and specialized data links.
Spring-Loaded Base
Integrated spring mechanism allows the antenna to flex upon impact, significantly increasing durability in active tactical scenarios.
Extreme Temp Resistance
Designed to operate in extreme heat up to +120°C, suitable for desert environments or mounting near high-temperature machinery.
IP67 & MIL-STD-810G
Fully waterproof and tested against vibration (5G) and salt spray (96Hr), ensuring reliability in maritime and combat environments.
70W High Power
Capable of handling 70W Continuous Wave power, ideal for high-power transmission systems or electronic countermeasure (ECM) roles.
