3.2GHz to 3.4GHz 5dBi Omnidirectional Handheld and Manpack Antenna for Signal Defense (With Spring)
Military FT-RF Taiwan
10 out of
10
-
Description & Specification

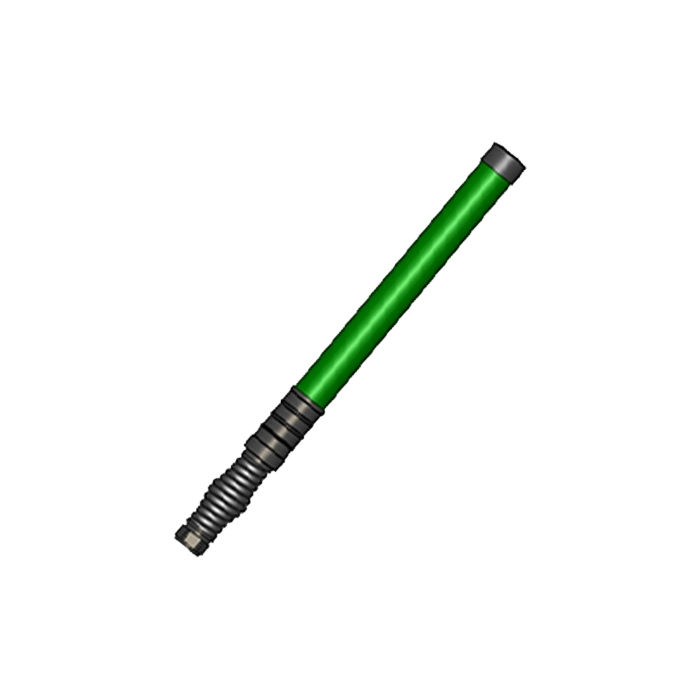

3.2GHz to 3.4GHz 5dBi Omnidirectional Manpack Antenna With Spring N-Male
MH-3234G05A-NM | 70W Power | IP67 & MIL-STD-810G
The MH-3234G05A-NM is a high-performance omnidirectional antenna engineered for signal defense. Delivering a stable 5 dBi gain across the 3.2-3.4 GHz spectrum, this antenna is optimized for rugged handheld and manpack operations. Its robust construction and integrated spring base ensure high-degree structural integrity and mechanical survival in extreme environments.
Technical Specifications
Electrical Performance
| Frequency Range | 3.2 GHz to 3.4 GHz |
| Gain | 5 dBi |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 28° |
| VSWR | > 2.5 |
| Connector | N-Male (Spring Base) |
Mechanical & Environmental Specs

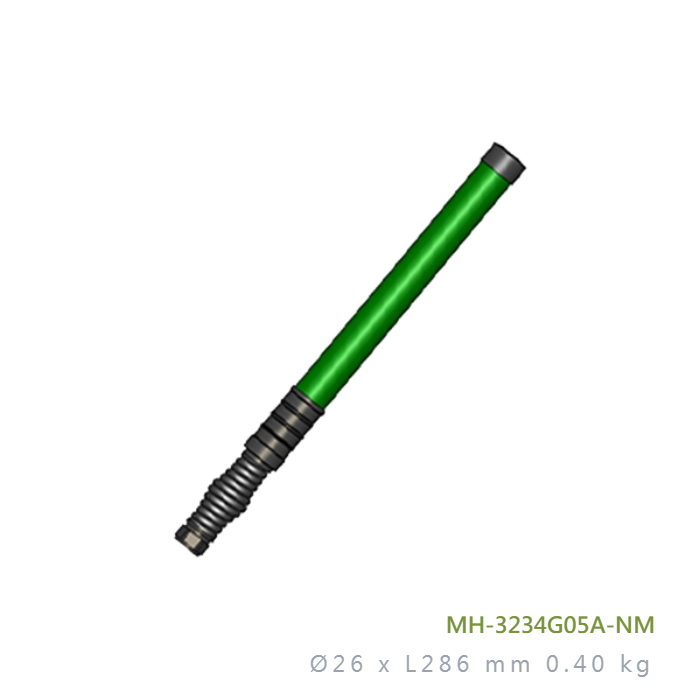

| Dimensions | Ø26 x L286 mm |
| Weight | 0.40 kg |
| Operating Temp | -40°C to +120°C |
| Waterproof / Humidity | IP67 / 95% |
| MIL-Compliance | MIL-STD-810G (5.0G Vibration) |
Professional Features
Signal Defense Optimized
Specifically tuned for the 3.2-3.4 GHz band, suitable for specialized signal defense and communication systems.
Spring-Loaded Resilience
Integrated flex mechanism allows the antenna to flex upon impact, significantly increasing durability in active rugged scenarios.
Environmental Durability
Tested against 96-hour salt spray and extreme temperatures, ensuring reliable operation in harsh maritime or desert conditions.
MIL-SPEC Reliability
Fully waterproof (IP67) and vibration tested (5.0G), ensuring long-term survivability in demanding field deployments.
Get a Quote / Customization
Contact us for custom color options or specific frequency tuning for your communication systems. Made in Taiwan.
