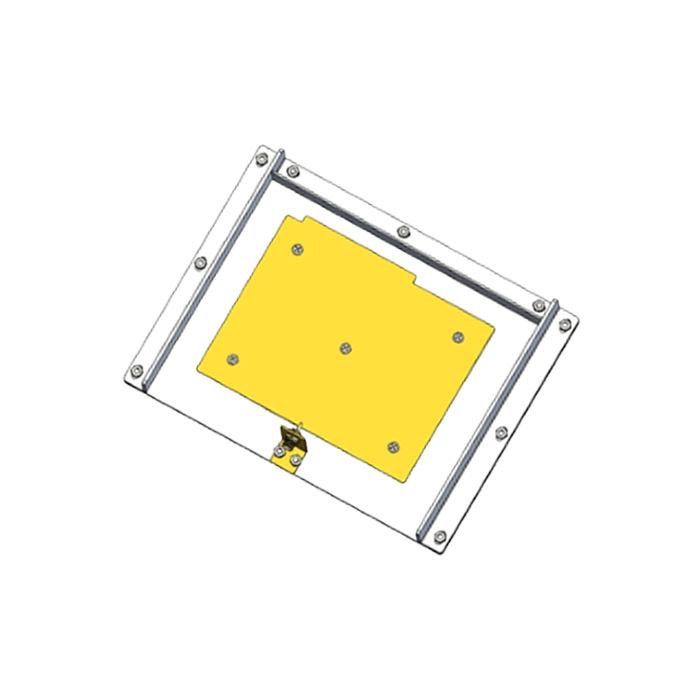

1.2-1.4GHz 8dbi Panel Directional High Power Antenna SMA-Female
Military FT-RF Taiwan
10 out of
10
-
Description & Specification
1.2GHz to 1.4GHz 8dBi High Power Panel Antenna
1.2-1.4 GHz High-Performance L-Band | 8 dBi Directional Gain | 300W High Power
The MP-1214G08A-SF is a high-performance Log Periodic Directional Antenna engineered for wide-spectrum VHF dominance. Delivering a stable 7 dBi gain across the 80-300 MHz spectrum, this antenna is optimized for Signal Defense and advanced protective operations. Its robust aluminum construction ensures high-degree structural integrity and mechanical survival in extreme environments.
Technical Specifications
Electrical Performance
| Frequency Range | 1.2 GHz to 1.4 GHz |
| Gain | 8 dBi |
| Horizontal Beamwidth | 58° |
| Vertical Beamwidth | 46° |
| VSWR | ≤ 1.5 |
| Polarization | Linear |
| Connector | SMA-Female |
Mechanical & Environmental Specs

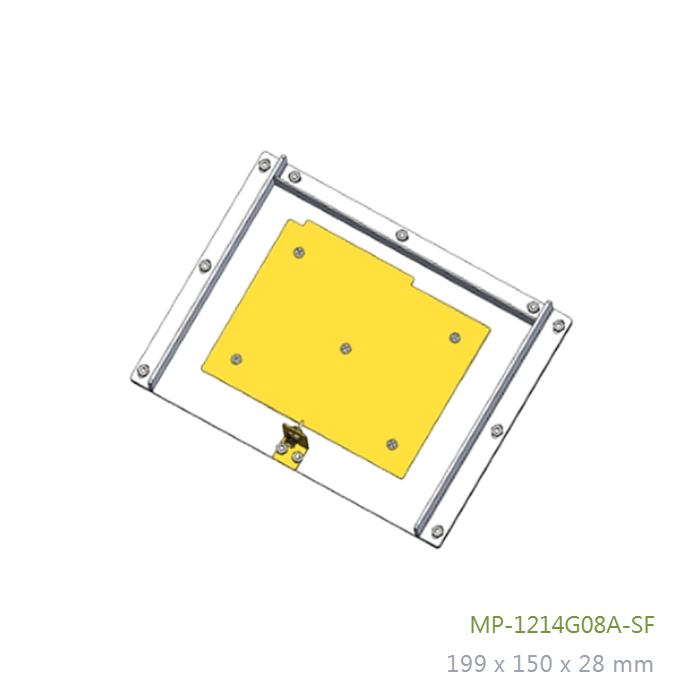

| Dimensions | 199 x 150 x 28 mm |
| Weight | 0.5 kg |
| Material | Aluminum with UV-Stabilized Radome |
| Operating Temp | -40°C to +85°C |
Tactical Features
High-Power 300W L-Band
Engineered for high-energy L-band transmission, ideal for aviation ground stations and radar relays.
Directional Precision
Focused 58° horizontal beamwidth for significant range extension and interference reduction.
Extreme Endurance
Operates reliably from -40°C to +85°C, meeting MIL-STD requirements for harsh environments.
Compact Tactical Profile
Low-profile design under 20cm for discreet deployment and low wind resistance on mobile platforms.
Get a Quote / Customization
Contact us for N-Type connector options or specialized radome coatings for harsh marine environments. Made in Taiwan.
