1G to 1.2G High Power 8dbi Directional Antenna SMA-Female
Military FT-RF Taiwan
10 out of
10
-
Description & Specification

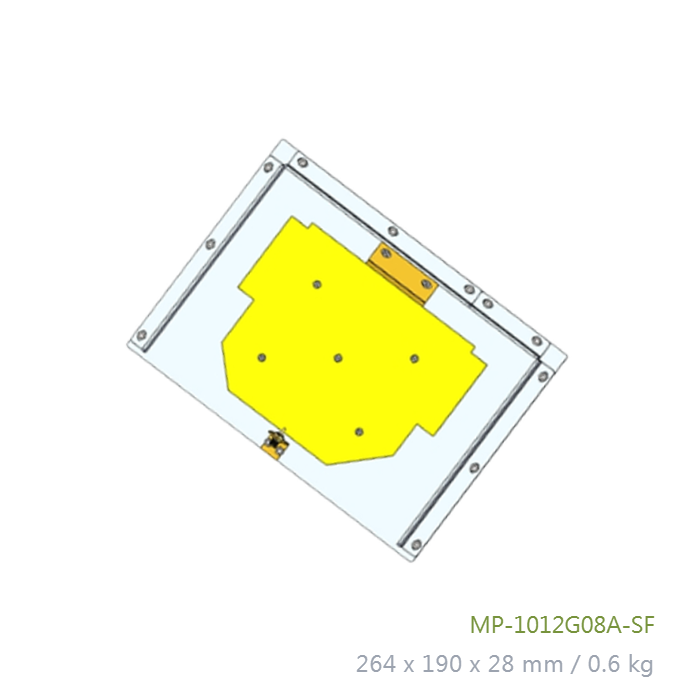

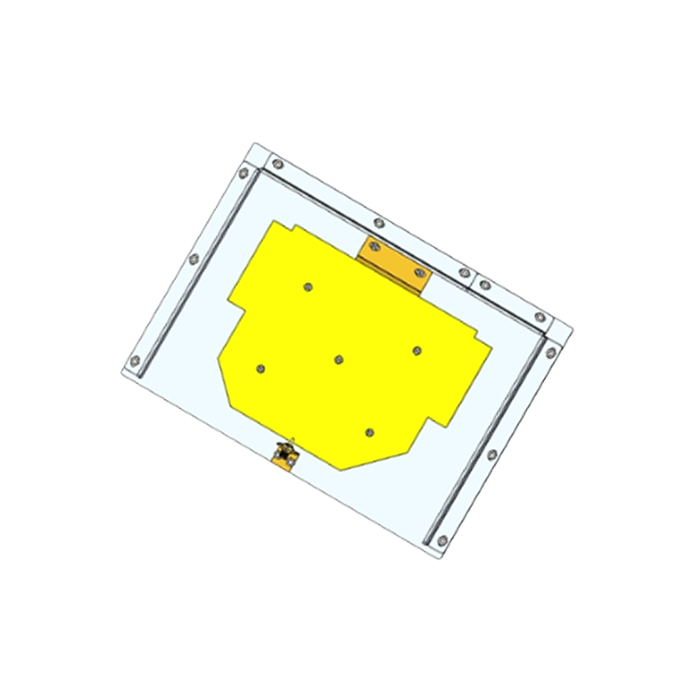

1.0-1.2 GHz 8dBi High Power Panel Antenna
300W Continuous Power | L-Band Aviation & Tactical
The MP-1012G08A-SF is a high-performance Log Periodic Directional Antenna engineered for wide-spectrum VHF dominance. Delivering a stable 7 dBi gain across the 80-300 MHz spectrum, this antenna is optimized for Signal Defense and advanced protective operations. Its robust aluminum construction ensures high-degree structural integrity and mechanical survival in extreme environments.
Technical Specifications
Electrical Performance
| Frequency Range | 1.0 GHz to 1.2 GHz |
| Gain | 8 dBi |
| Horizontal Beamwidth | 58° |
| Vertical Beamwidth | 46° |
| VSWR | ≤ 1.5 |
| Polarization | Linear |
| Connector | SMA-Female |
Mechanical & Environmental Specs
| Dimensions | 264 x 190 x 28 mm |
| Weight | 0.6 kg |
| Material | UV-Stable Radome (Made in Taiwan) |
| Operating Temp | -40°C to +85°C |
Tactical Features
300W High Power Capacity
Engineered for high-power L-band transmitters, providing stable continuous wave (CW) performance.
L-Band / ADS-B Optimized
Specifically tuned for the 1-1.2 GHz spectrum, ensuring maximum efficiency for aeronautical surveillance.
Precise Directional Control
The 8 dBi directional pattern allows for accurate targeting of signal energy and range extension.
Rugged Tactical Profile
Low visual profile and low wind load, essential for tactical mast installations and discreet deployments.
Get a Quote / Customization
Contact us for custom cable assemblies or N-Type/SMA connector adaptations for your professional aviation systems.
