30MHz to 120MHz Professional Log-periodic antenna N-Female
Military FT-RF Taiwan
10 out of
10
-
Description & Specification

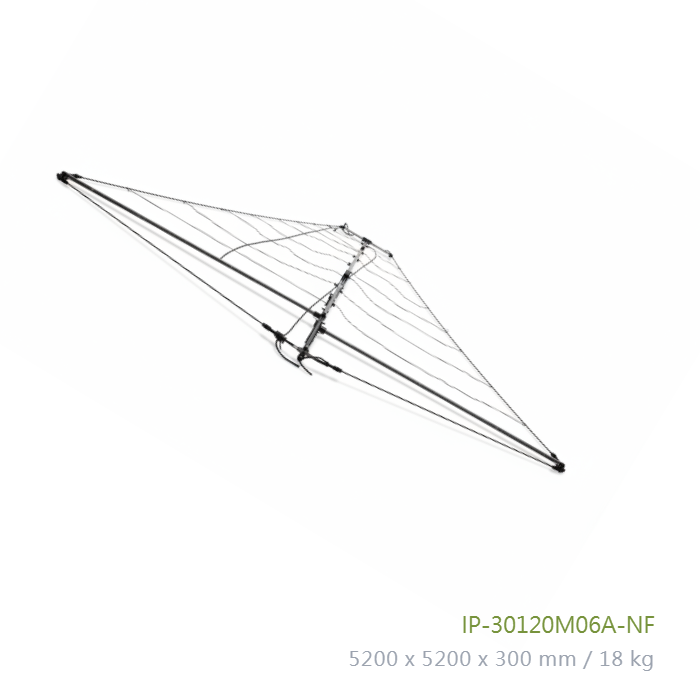

30MHz to 120MHz 6dBi VHF Tactical Broadband Panel Antenna
30-120 MHz High-Performance VHF | 6 dBi Directional Gain | Tactical Grade
The IP-30120M06A-NF is a high-performance Log Periodic Directional Antenna engineered for wide-spectrum VHF dominance. Delivering a stable 7 dBi gain across the 80-300 MHz spectrum, this antenna is optimized for Signal Defense and advanced protective operations. Its robust aluminum construction ensures high-degree structural integrity and mechanical survival in extreme environments.
Technical Specifications
Electrical Performance
| Frequency Range | 30 MHz to 120 MHz |
| Gain | 6 dBi |
| Horizontal Beamwidth | 110° |
| Vertical Beamwidth | 96° |
| VSWR | ≤ 2.5 |
| Polarization | Vertical |
| Connector | N-Female |
Mechanical & Environmental Specs
| Dimensions | 5200 x 5200 x 300 mm |
| Weight | 18.0 kg |
| Material | Tactical Grade Lightweight Structure |
| Operating Temp | -40°C to +85°C |
Tactical Features
VHF Tactical Wideband
Covers the entire 30-120 MHz range for diverse tactical voice and data links without frequency-specific tuning.

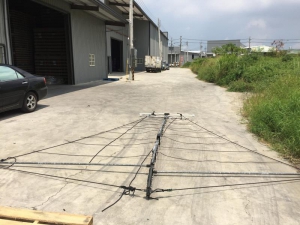

Massive 5.2m Aperture
Optimized for lower frequency resonance, providing exceptional directivity and gain at the 30MHz band edge.
Wide Sector Coverage
110° horizontal beamwidth offers broad sectorial coverage, reducing the number of antennas required.
Lightweight Engineering
At only 18kg, this massive antenna is designed for easier integration onto communication towers and tactical masts.
Get a Quote / Customization
Contact us for wind-loading data or custom mounting bracket designs for this large-scale antenna. Made in Taiwan.
