30MHz to 88MHz VHF Professional Dipole Broadband Antenna BNC-Female
Military FT-RF Taiwan
10 out of
10
-
Description & Specification
30-88 MHz VHF Professional Dipole Broadband Antenna
Vehicle Mount | 100W Power | 3.3m Height | Rugged Fiberglass
[Image of VHF Vehicle Dipole Antenna]
The MV-3088M02B-BF (formerly OA-3088M02B-BF) is a robust, professional-grade VHF Broadband Dipole Antenna designed for the 30 MHz to 88 MHz tactical frequency band. Standing over 3.3 meters tall, it features a center-fed dipole design that delivers reliable omnidirectional performance independent of the vehicle's ground plane. Constructed with a high-strength Green Fiberglass Radome and a Nickel-Plated Copper Base, it is engineered to withstand extreme wind speeds up to 150 MPH and harsh temperatures from -50°C to +75°C. It is the ideal communication solution for Jeeps, trucks, and armored vehicles in demanding field environments.
Technical Specifications
Electrical Specifications
| Model Number | MV-3088M02B-BF |
| Frequency Range | 30 - 88 MHz (Broadband VHF) |
| Gain (Avg) | -2 dBi to 2 dBi |
| V.S.W.R (Avg) | 3.5 : 1 |
| Average Power | 100 Watts |
| Antenna Type | Collinear Dipole |
| Polarization | Vertical |
| Beamwidth | H: 360° / V: 89° |
| Impedance | 50 Ohm |
| Connector | BNC-Female |
Mechanical & Environmental Specifications

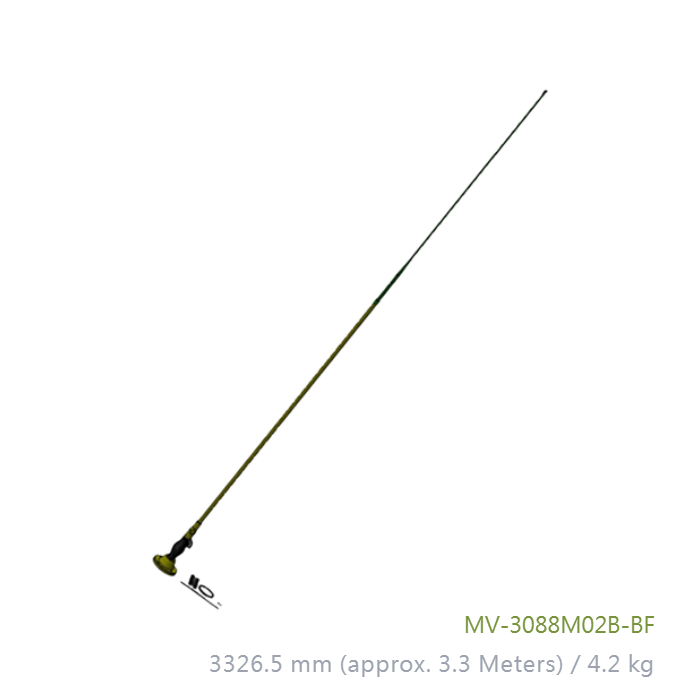

| Length | 3326.5 x 140 x 140 mm (approx. 3.3 Meters) |
| Base Size | 227 x 140 x 140 mm |
| Weight (N.W) | 4.2 Kg |
| Radome Material | Green Fiberglass + UV Coating |
| Base Material | Copper, Nickel-Plated |
| Internal Material | Copper |
| Wind Survival | > 150 MPH |
| Operating Temp | -50°C to +75°C |
| Operating Humidity | 10% ~ 90% non-condensing |
| Compliance | RoHS, MIL-Stds |
Key Features (Model Specific)
Broadband 30-88 MHz
Full coverage of the VHF tactical band, enabling secure voice and data communications across a wide frequency range.
Dipole Design
Center-fed dipole structure minimizes dependence on the vehicle's ground plane, allowing flexible installation on various vehicle types.
Extreme Durability
Withstands wind speeds over 150 MPH and operating temperatures down to -50°C, ensuring mission success in any climate.
Rugged Construction
Features a copper internal element protected by a heavy-duty fiberglass radome and a corrosion-resistant nickel-plated copper base.
High Power 100W
Capable of handling 100 Watts average power, suitable for high-power vehicle mobile radios.
