Professional VHF Wideband Discone Antenna 25 MHz to 3000 MHz N-Female
Rugged & Unmanned FT-RF Global
10 out of
10
-
Description & Specification

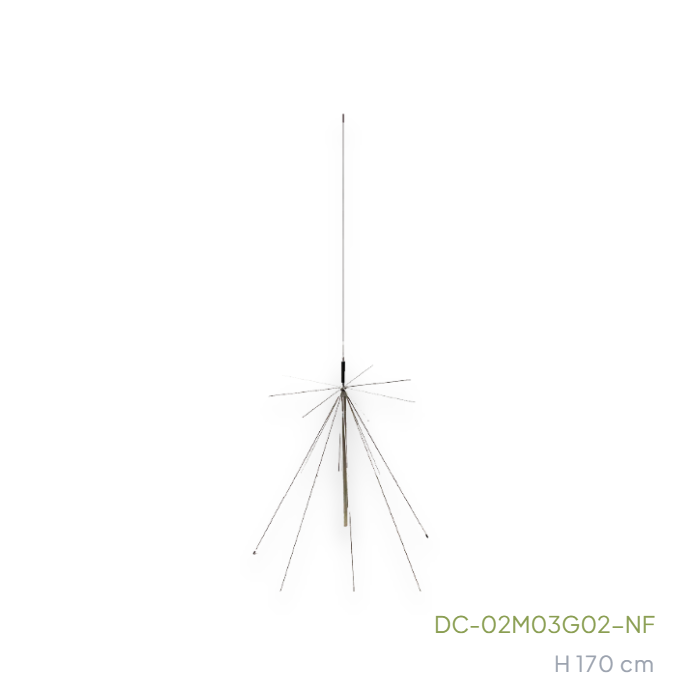

25-3000 MHz Professional Wideband Monitoring Antenna
Stainless Steel Construction | 170cm Height | All-Band Receiving
This professional-grade Wideband Monitoring Antenna is engineered for comprehensive signal acquisition across the 25 MHz to 3000 MHz spectrum. Constructed from high-durability stainless steel, it stands at 170cm and is optimized for long-term outdoor surveillance and Signal Management. It provides a stable omnidirectional pattern with a 2 dBi gain, making it an essential tool for spectrum analysis and multi-band monitoring operations.
Technical Specifications
Antenna Performance
| Frequency Range | 25 - 3000 MHz (Receiving) |
| Gain | 2 dBi |
| V.S.W.R | < 2.0 |
| Impedance | 50 Ohm |
Mechanical & Environmental
| Height | 170 cm |
| Material | High-Grade Stainless Steel |
| Mounting Type | Pole Mount (Hardware Included) |
| Connector | UHF-Female (Standard) |
Key Operational Features
Ultra-Wideband Coverage
Seamlessly covers VHF, UHF, and SHF bands from 25MHz to 3GHz, eliminating the need for multiple antenna arrays in monitoring stations.
Stainless Steel Build
Engineered with rugged stainless steel elements to withstand harsh environmental conditions, ensuring high-degree structural integrity for years.
Signal Management Ready
Ideal for spectrum monitoring, Signal Defense auditing, and identifying unauthorized transmissions across a massive frequency range.
Omnidirectional Efficiency
Provides uniform 360-degree horizontal coverage, ensuring stable reception of signals regardless of the transmitter's relative position.
Get a Quote / Customization
Contact us for custom mounting brackets or specialized cabling options for your monitoring infrastructure.
